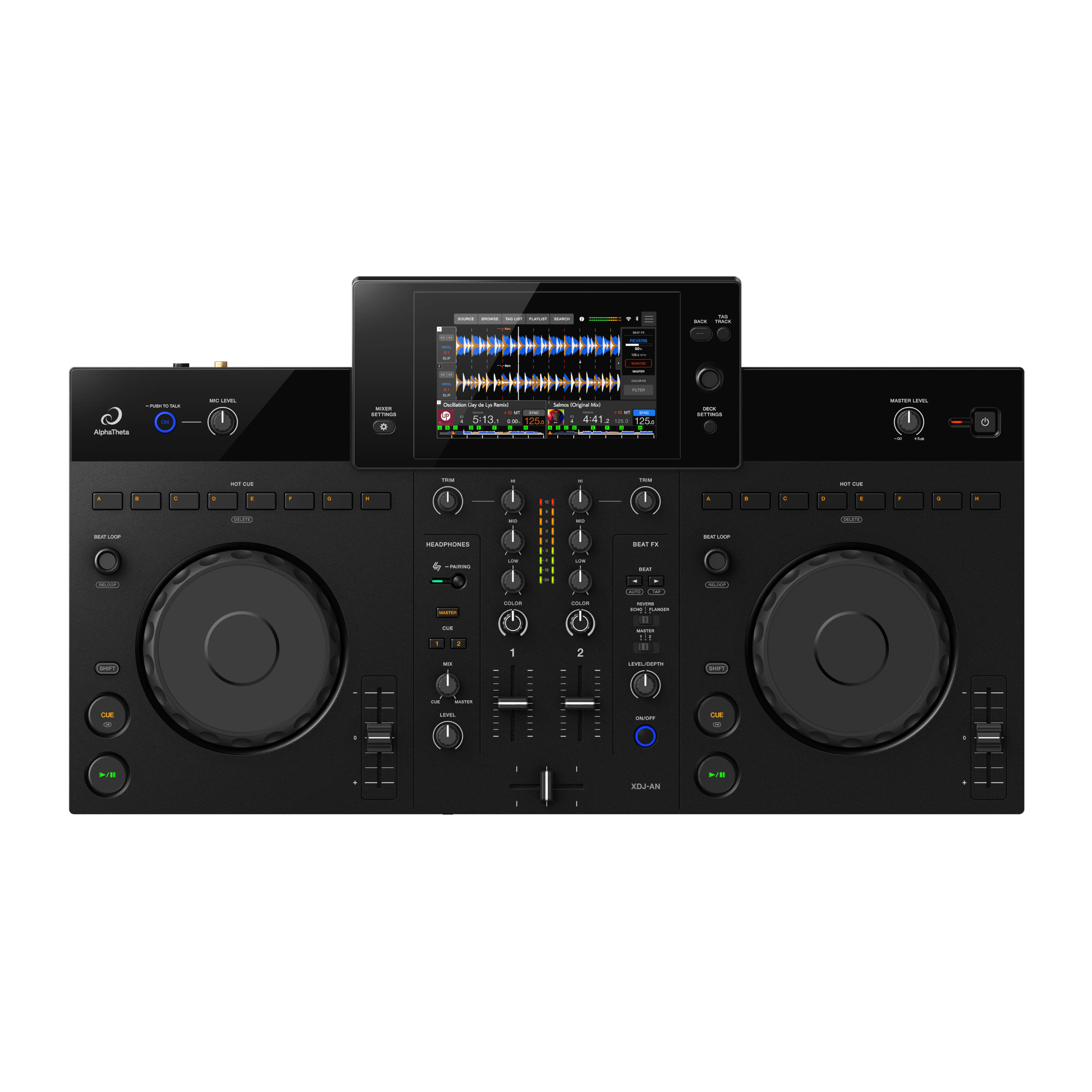

AlphaTheta XDJ-AN 2-Channel All-in-One DJ System

Discover It. Prepare It. Mix It. All from One System.

Meet the AlphaTheta XDJ-AN — a next-generation 2-channel all-in-one DJ system built for DJs who want the freedom of streaming, cloud libraries, USB media, mobile apps, and laptop DJ software without giving up the familiar workflow of professional club gear.

Inspired by AlphaTheta's professional CDJ and DJM ecosystem, the XDJ-AN puts a 7-inch touchscreen, built-in Wi-Fi, StreamingDirectPlay, rekordbox CloudDirectPlay, USB-C, Bluetooth, SonicLink wireless monitoring, 2-deck control, Sound Color FX, Beat FX, and professional XLR outputs into one streamlined system.

Search for a track online.

Add it to your set.

Pull another from the cloud.

Mix in music from USB.

Then take the same skills and workflow toward the club.

One system. Multiple music sources. No creative boundaries.

Why the AlphaTheta XDJ-AN Is a Big Deal

The way DJs find music has changed.

Your next track might be on a USB drive. It might be sitting in your rekordbox cloud library. It might be on Apple Music, Beatport Streaming, or TIDAL. Or it might already be stored on your phone.

The XDJ-AN brings these workflows together.

Instead of forcing you to build your entire performance around one music source, it lets you move between compatible streaming, cloud, USB, mobile, and computer-based libraries from one compact DJ system.

And because its control layout takes inspiration from professional AlphaTheta CDJ and DJM gear, the skills you develop at home can translate naturally when you step into a professional booth.

Practice at home. Build your library anywhere. Walk into the booth ready.

Key Features

• 2-channel, 2-deck standalone all-in-one DJ system

• Club-style layout inspired by professional CDJ and DJM gear

• 7-inch WSVGA capacitive touchscreen

• 1024 × 600 display resolution

• Built-in dual-band 2.4 GHz / 5 GHz Wi-Fi

• rekordbox StreamingDirectPlay

• Streaming support for Apple Music, Beatport Streaming, and TIDAL

• rekordbox CloudDirectPlay

• Cloud library support via Dropbox and Google Drive

• Cloud Library Sync

• Playlist editing directly on the XDJ-AN

• Quick QR-code login

• USB Type-C media playback

• OneLibrary support

• rekordbox Link Export via Wi-Fi

• Built-in SonicLink transmitter

• Wireless headphone monitoring with latency as low as 9 ms using compatible SonicLink headphones

• Bluetooth audio input and output

• rekordbox for Mac/Windows Hardware Unlock

• rekordbox for iOS support

• Serato DJ Lite compatibility

• Serato DJ Pro compatibility

• djay Pro for Mac/Windows compatibility

• djay for iOS compatibility

• DJM-REC support for recording and livestreaming

• 132 mm jog wheels

• 6 Sound Color FX

• 3 Beat FX

• Professional balanced XLR master outputs

• RCA master outputs

• Microphone input

• Compact 5.2 kg design

• 112 dB USB signal-to-noise ratio

• 20 Hz–20 kHz frequency response

7-inch Touchscreen — Your Music at Your Fingertips

At the center of the XDJ-AN is a bright 7-inch WSVGA touchscreen with 1024 × 600 resolution.

It's designed to give you the information you need without turning DJing into menu diving.

Use the Source screen to select your music source.

Move to Browse and see important track information such as:

• Track title

• Artwork

• Preview waveform

• BPM

• Key

Then jump into the Waveform screen to monitor:

• Overall waveform

• Cue points

• Loops

• BPM

• Key

• Tempo

• Performance information

The result is a workflow that feels visual, fast, and familiar.

Find the track. Read the track. Mix the track.

StreamingDirectPlay — Millions of Tracks Meet Your DJ Booth

What if the track you need isn't on your USB?

Search for it.

The XDJ-AN supports StreamingDirectPlay, giving you direct access to compatible music streaming services including:

Apple Music

Beatport Streaming

TIDAL

This makes the XDJ-AN particularly powerful for open-format DJs, event DJs, house parties, livestreams, practice sessions, and anyone who constantly discovers new music.

Instead of purchasing and downloading every track before you can even test it in a mix, supported streaming integration lets you explore music directly within your DJ workflow.

Subscriptions and internet access are required, and service availability can vary by country or region.

Info Search — Let One Great Track Find the Next

You've found the perfect track.

Now what comes after it?

The XDJ-AN's Info Search functionality can help you discover related tracks from supported streaming catalogs based on information such as the artist or album of the track you're currently playing.

That means music discovery doesn't have to stop when the DJ set begins.

Hear something you like.

Explore related music.

Find your next track.

Turn discovery into performance.

CloudDirectPlay — Your rekordbox Library Without the USB Transfer

Prepare your library on your computer.

Synchronize it to the cloud.

Access it from the XDJ-AN.

With rekordbox CloudDirectPlay, compatible rekordbox users can access music stored through supported cloud services including:

• Dropbox

• Google Drive

Cloud Library Sync also enables playlists and other compatible library information to remain synchronized across your devices.

And unlike some traditional standalone workflows, the XDJ-AN lets you create, reorder, edit, delete, and select multiple tracks in cloud-based playlists directly from the unit.

Your library doesn't stop evolving just because you've started DJing.

A compatible rekordbox subscription plan may be required for cloud functionality.

QR Login — From Arrival to Music in Seconds

Nobody wants to type a long password into DJ equipment.

The XDJ-AN simplifies access to compatible cloud and streaming services through QR-code login.

Display the login QR code.

Scan it with your smartphone.

Authenticate.

Get to your music.

It's a small workflow improvement that can make a huge difference when you're ready to play.

USB-C — The Modern Standalone DJ Workflow

Prefer the reliability and simplicity of physical media?

The XDJ-AN has you covered.

Connect a compatible USB Type-C storage device and play prepared music directly from your library.

The XDJ-AN supports OneLibrary, helping create a more unified library workflow across compatible DJ equipment and software.

Prepare your music.

Export it.

Connect your drive.

Start playing.

No laptop needs to sit beside you for a traditional standalone USB performance.

Built-in SonicLink — Cut the Headphone Cable

Headphone cables have been wrapped around mixer knobs, caught under hands, and dragged across DJ booths for decades.

The XDJ-AN gives you another option.

It features a built-in SonicLink transmitter, using AlphaTheta's proprietary ultra-low-latency wireless audio technology.

Pair compatible SonicLink headphones — such as the AlphaTheta HDJ-F10 — directly with the XDJ-AN and monitor your mix wirelessly without requiring a separate transmitter.

With latency as low as 9 milliseconds, SonicLink is designed to provide the responsiveness required for DJ monitoring.

Move around.

Reach across the decks.

Work the mixer.

No headphone cable required.

Bluetooth Input + Output — More Ways to Connect

The XDJ-AN also features Bluetooth Classic connectivity with SBC and AAC codec support.

Bluetooth input gives you another convenient way to bring external audio into your setup, while Bluetooth output expands your wireless playback possibilities.

For casual sessions, home setups, practice environments, and flexible audio configurations, Bluetooth adds another layer of connectivity to an already versatile system.

Club-style Layout — Practice for the Booth, Not Just the Bedroom

One of the XDJ-AN's most important features isn't a specification.

It's familiarity.

AlphaTheta designed the control layout around the workflow of its professional CDJ multi players and DJM mixers.

That means DJs learning at home can become familiar with concepts and controls they'll encounter when moving toward professional equipment.

You get separate deck controls.

A central 2-channel mixer.

Performance controls.

Effects.

Touchscreen browsing.

Jog wheels.

The objective is simple:

Make the transition from home setup to professional booth feel natural.

132 mm Jog Wheels — Hands-on Deck Control

Each deck features a 132 mm jog wheel, giving you tactile control over your tracks.

Use the jog wheels for:

• Cueing

• Searching

• Pitch bending

• Beat correction

• Track positioning

• Scratching

Their compact dimensions help keep the overall XDJ-AN footprint manageable while retaining the hands-on feel expected from a dedicated DJ system.

Sound Color FX — Shape Every Transition

The XDJ-AN includes 6 Sound Color FX for creative control over individual channels:

• SPACE

• DUB ECHO

• SWEEP

• NOISE

• CRUSH

• FILTER

Want to strip the low end before a transition?

Sweep the filter.

Need atmosphere?

Add Space.

Want energy before the drop?

Bring in Noise.

Need something more aggressive?

Hit Crush.

These effects put expressive sound shaping directly beneath your fingertips.

Beat FX — Add Movement to the Mix

The XDJ-AN also includes 3 Beat FX:

• REVERB

• ECHO

• FLANGER

Use Echo for smooth transitions.

Add Reverb to create space.

Bring in Flanger for movement and dramatic builds.

Combined with the Sound Color FX, you've got an effects section capable of taking a basic A-to-B mix and turning it into a performance.

rekordbox Hardware Unlock — Connect Your Computer and Play

Want to use a laptop?

Connect the XDJ-AN to a compatible PC or Mac and use rekordbox for Mac/Windows in Hardware Unlock modewithout needing a separate license for supported unlocked functionality.

That gives you the freedom to choose between:

Standalone USB DJing

Cloud DJing

Streaming

Mobile DJing

or

Laptop DJ software

without needing an entirely different piece of hardware.

Use Your iPhone as Your Music Source

The XDJ-AN expands mobile workflows with support for rekordbox for iOS.

Connect a compatible iPhone via USB and DJ using music available through your mobile setup.

This is particularly useful when you want to practice or perform without carrying a laptop or building your entire workflow around removable storage.

djay Integration — Another Way to Perform

Prefer Algoriddim's djay ecosystem?

The XDJ-AN supports djay for iOS as well as djay Pro for Mac and Windows with the appropriate subscription.

That gives mobile-first and software-focused DJs more freedom to choose the platform that fits their workflow.

Serato DJ Support

Serato users aren't left behind.

The AlphaTheta XDJ-AN supports:

• Serato DJ Lite

• Serato DJ Pro

Serato DJ Lite can be used without a separate software license, while Serato DJ Pro requires the appropriate subscription/license.

Whether you're coming from a Serato controller or want software flexibility alongside standalone performance, the XDJ-AN can fit into your workflow.

DJM-REC — Record and Livestream Your Sets

A great DJ set shouldn't disappear when the last track ends.

The XDJ-AN supports DJM-REC, allowing compatible users to record their performances and extend them into livestreaming and social content workflows.

Record mixes.

Capture practice sessions.

Livestream performances.

Turn one DJ session into content that keeps working after the decks stop.

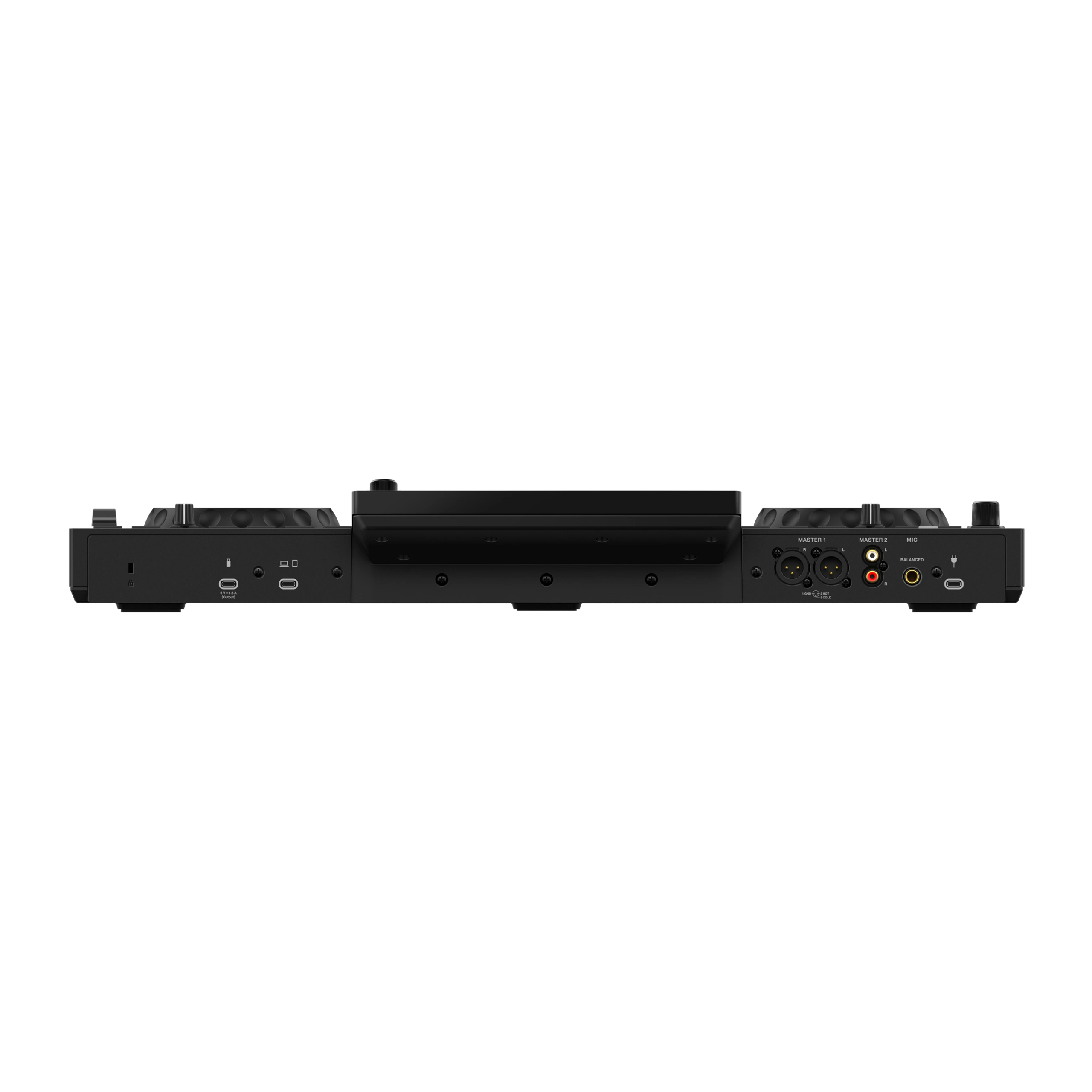

Professional XLR Outputs — Ready for Serious Sound Systems

The XDJ-AN isn't limited to desktop speakers.

Its professional connectivity includes balanced XLR master outputs, making it easy to integrate with professional PA systems, active speakers, mixers, and venue sound systems.

You also get RCA master outputs for conventional home and consumer audio equipment.

So the same system can move from:

Bedroom practice to House party to Studio to Professional PA.

Professional Sound Quality

AlphaTheta brings decades of DJ-focused audio engineering to the XDJ-AN.

The system delivers a 20 Hz–20 kHz frequency response, 112 dB signal-to-noise ratio via USB, and just 0.003% total harmonic distortion via USB.

The goal is straightforward:

Powerful lows.

Clear mids.

Detailed highs.

Clean transitions.

Whether you're playing through nearfield monitors at home or connecting to a serious PA system, the XDJ-AN is engineered to keep your music clear and energetic.

AlphaTheta XDJ-AN Technical Specifications

Specification	Details
Product Type	All-in-One DJ System
Channels	2
Deck Control	2 decks
Main Display	7-inch touchscreen
Display Resolution	WSVGA 1024 × 600
Jog Wheel Size	132 mm
Frequency Response	20 Hz–20 kHz (USB, MIC)
Signal-to-Noise Ratio	112 dB USB / 78 dB MIC
Total Harmonic Distortion	0.003% USB
Microphone Input	1 × 1/4-inch TRS
Master Output 1	Balanced XLR
Master Output 2	RCA
Headphone Output	3.5 mm stereo mini jack
USB Storage	1 × USB Type-C
Computer/Mobile Connection	1 × USB Type-C
Power Connection	1 × USB Type-C
Wi-Fi	IEEE 802.11 a/b/g/n/ac
Wi-Fi Bands	2.4 GHz / 5 GHz
Bluetooth	Bluetooth Classic
Bluetooth Codecs	SBC, AAC
SonicLink	Built-in transmitter
SonicLink Band	2.4 GHz
SonicLink Latency	As low as 9 ms
StreamingDirectPlay	Apple Music, Beatport Streaming, TIDAL
CloudDirectPlay	Dropbox, Google Drive
OneLibrary	Supported
Playlist Editing	Supported
rekordbox Link Export	Via Wi-Fi
Sound Color FX	6
Beat FX	3
Dimensions (W × D × H)	638 × 359.2 × 89.9 mm
Weight	5.2 kg

Sound Color FX

The XDJ-AN includes:

• SPACE

• DUB ECHO

• SWEEP

• NOISE

• CRUSH

• FILTER

Beat FX

The XDJ-AN includes:

• REVERB

• ECHO

• FLANGER

Compatible DJ Software & Apps

The AlphaTheta XDJ-AN supports:

• rekordbox for Mac/Windows — Hardware Unlock

• rekordbox for iOS

• rekordbox Link Export

• Serato DJ Lite

• Serato DJ Pro

• djay Pro for Mac/Windows

• djay for iOS

• DJM-REC

Specific subscriptions or licenses may be required depending on the software, streaming service, and functionality used.

Ideal for

The AlphaTheta XDJ-AN is an excellent choice for:

• Beginner DJs moving toward professional gear

• Intermediate DJs upgrading from a controller

• rekordbox users

• Serato users

• Streaming-focused DJs

• Mobile DJs

• Open-format DJs

• Home DJ setups

• Bedroom DJs

• House parties

• Bars and lounges

• Small venues

• DJ schools and academies

• Livestreaming DJs

• Content creators

• DJs who want standalone performance without a laptop

• DJs who want one system for USB, cloud, streaming, mobile, and computer workflows

What's in the Box?

• AlphaTheta XDJ-AN All-in-One DJ System

• AC adapter

• Power cord

• Quick Start Guide

• Precautions for Use

• Warranty documentation where applicable

XDJ-AN — From Your First Mix to Your First Club Booth

The AlphaTheta XDJ-AN is built around one idea:

Your DJ setup should grow with you.

Start with streaming while you're discovering music.

Build playlists in the cloud.

Practice with the same USB library you'll take elsewhere.

Connect your phone when you want to stay mobile.

Plug in your computer when you want rekordbox, Serato, or djay.

Monitor wirelessly with SonicLink.

And learn on a layout inspired by the professional CDJ and DJM ecosystem you're likely to encounter as you progress.

With its 7-inch touchscreen, built-in Wi-Fi, StreamingDirectPlay, CloudDirectPlay, USB-C, SonicLink, Bluetooth, 2-channel mixer, 132 mm jog wheels, professional XLR outputs, Sound Color FX, Beat FX, and broad software compatibility, the XDJ-AN gives modern DJs an enormous amount of flexibility in one compact system.

Discover anywhere. Prepare anywhere. Perform your way.

AlphaTheta XDJ-AN — one system built for the entire journey.
