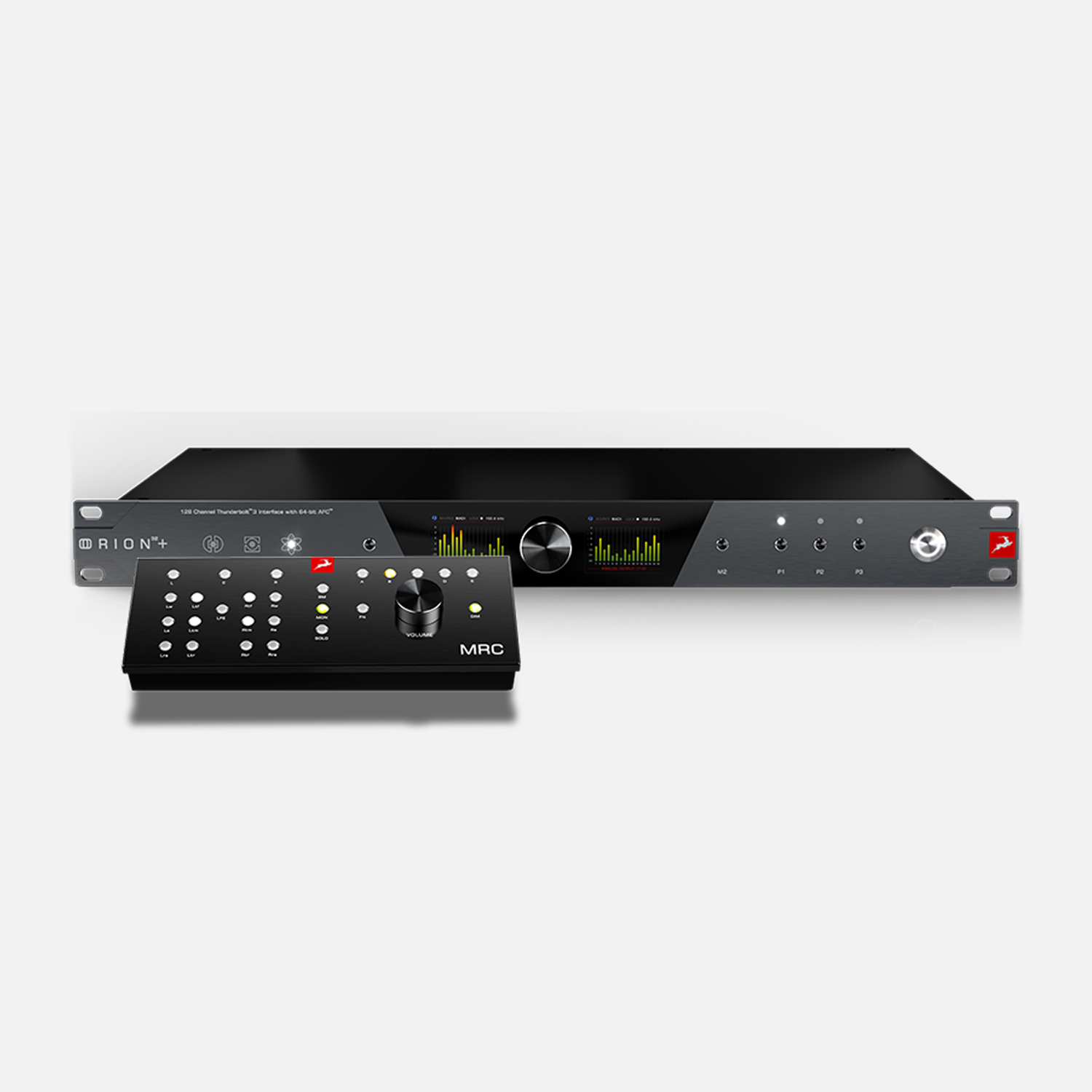

Antelope Audio Orion 32+ Gen 4 with MRC Monitoring Controller
Overview
Experience unparalleled audio conversion, ultra-low latency, and precision monitoring with the Antelope Audio Orion 32+ Gen 4, now paired with the powerful MRC (Monitor Remote Control). Built for demanding studios, this fourth-generation Orion 32+ delivers up to 64 channels of simultaneous playback/recording, backed by Thunderbolt™ 3 and USB-C connectivity. The MRC adds precise, hands-on control over complex monitoring workflows, making this the ultimate system for professional audio production.
Key Features
|
Feature |
Description |
|---|---|
|
64-Channel Audio Interface |
Up to 64 simultaneous channels at 24-bit/192kHz via Thunderbolt™ 3 |
|
MRC Monitoring Controller |
Hardware remote with precise control over volume, sources, and speaker sets |
|
High-End AD/DA Conversion |
Industry-leading conversion with 129dB dynamic range |
|
USB & Thunderbolt™ 3 Connectivity |
Versatile connections for both Windows and macOS |
|
Real-Time FPGA FX |
Built-in FPGA engine with vintage EQs, compressors, and more |
|
Word Clock & Atomic Clock Inputs |
Antelope’s renowned clocking technology for maximum audio integrity |
|
Low-Latency Performance |
Ultra-stable drivers with sub-millisecond round-trip latency |
|
Flexible Routing Matrix |
Powerful on-board digital patchbay via intuitive software |
|
Multiple Monitor Support |
Control up to 3 separate speaker sets with the MRC |
|
Surround Monitoring |
Supports up to 9.1.6 Dolby Atmos configurations |
Technical Specifications
Conversion
-
AD/DA Dynamic Range: 129 dB (A-weighted)
-
Sample Rates: 32 kHz – 192 kHz
-
Resolution: 24-bit

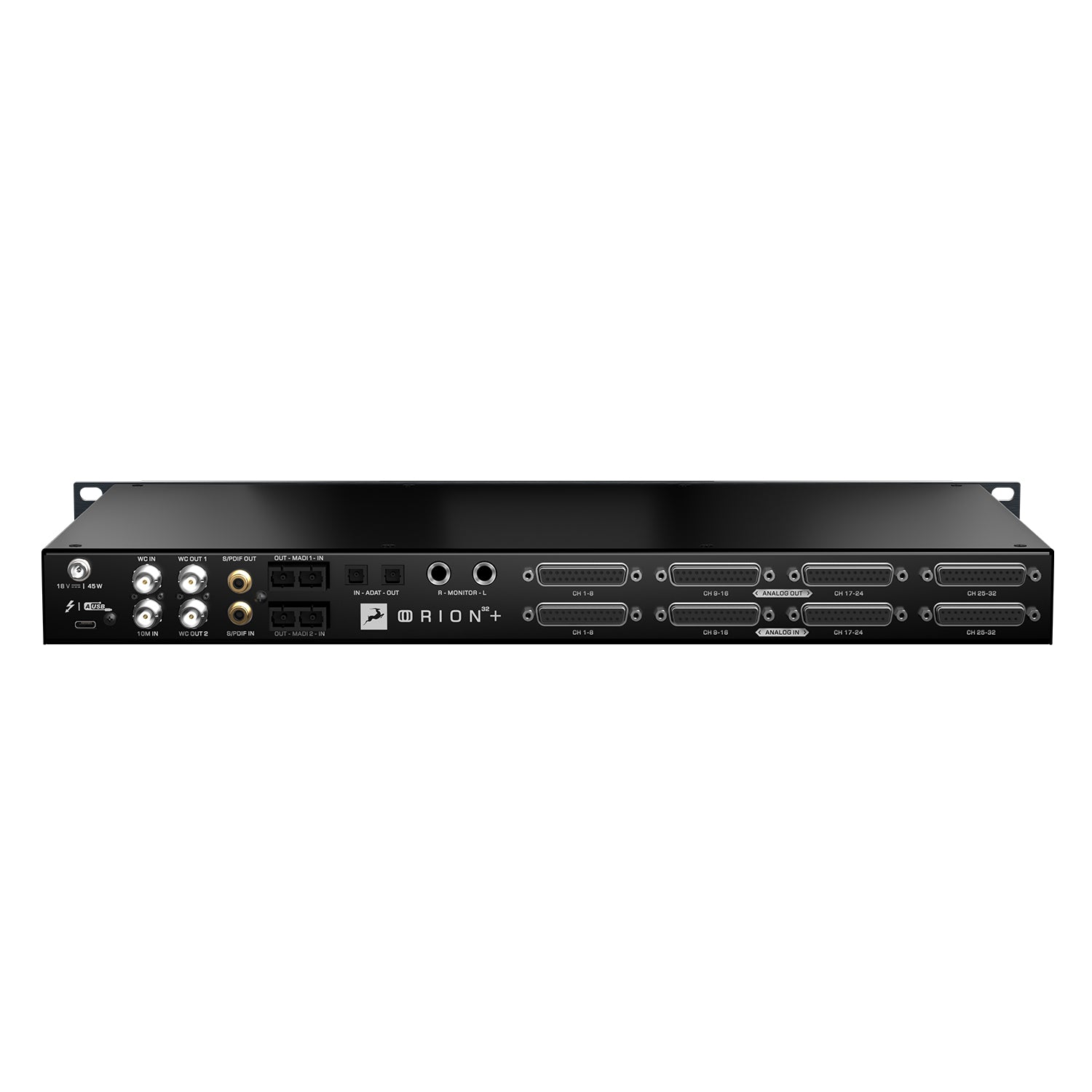

Analog I/O
-
8 x DB25 connectors for 32 analog inputs and 32 analog outputs
-
2 x Monitor outputs (TRS)
-
2 x Mic/Line inputs (XLR/TRS combo)
Digital I/O
-
1 x MADI In, 1 x MADI Out
-
2 x ADAT In, 2 x ADAT Out (16 channels @48kHz)
-
1 x S/PDIF In/Out
Clocking
-
Antelope 64-bit Acoustically Focused Clocking (AFC™)
-
Word Clock In/Out (BNC)
-
Atomic Clock Input
Connectivity
-
Thunderbolt™ 3 (Type-C)
-
USB-C 2.0
-
MRC connection via proprietary port
Monitoring Controller (MRC)
-
Assignable volume knob
-
Select source and monitor pairs
-
Programmable DIM/MUTE/Solo buttons
-
Works with Surround & Stereo setups
System Requirements
-
macOS: 10.14 or later (M1/M2 compatible)
-
Windows: 10 or later (64-bit)
-
Ports: Available USB or Thunderbolt™ 3 port
Ideal for:
Professional recording studios, post-production houses, Dolby Atmos setups, high-end mixing/mastering suites.
