Antelope Audio Orion Studio Synergy Core Thunderbolt/USB Audio Interface with MRC

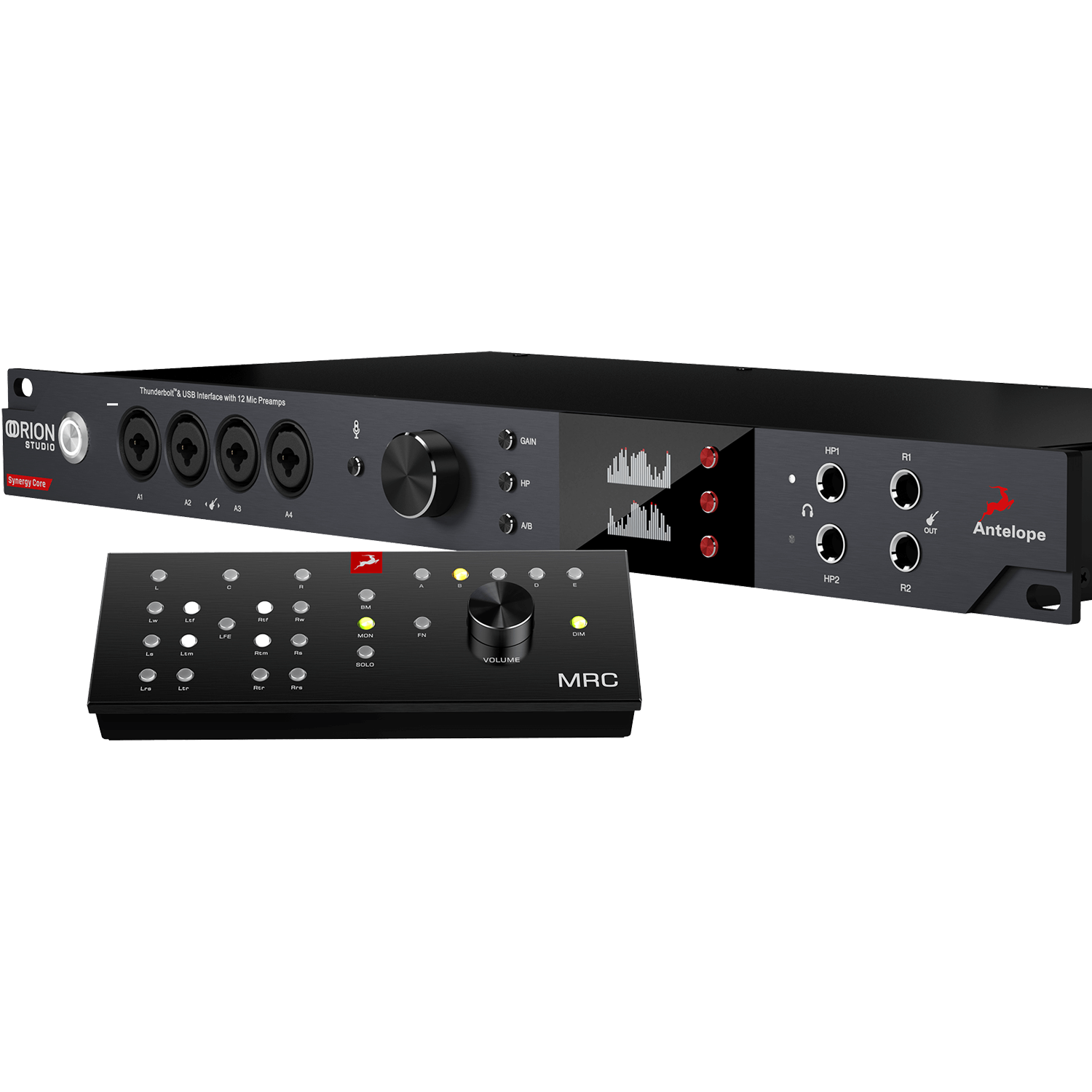

Antelope Audio Orion Studio Synergy Core with MRC

The Orion Studio Synergy Core with MRC is a powerhouse audio interface and monitoring solution built for the next generation of audio production—from stereo and surround to full immersive audio workflows. With industry-leading conversion, ultra-low latency Synergy Core FX processing, and the MRC (Monitor Remote Control), this bundle delivers precise control over complex monitoring setups including Dolby Atmos® and 7.1 surround environments.

Designed for audio engineers, music producers, and post-production professionals, the Orion Studio Synergy Core combines 12 preamps, 24-bit/192kHz conversion, and comprehensive I/O options including Thunderbolt™ 3 and USB, the Orion Studio Synergy Core combines flexibility, precision, and sonic excellence in a compact 1U rackmount interface.



---

Key Features

Feature	Details
Synergy Core FX Processing	2 x DSP + 1 x FPGA for real-time, ultra-low latency FX processing
12 Discrete Preamps	Ultra-linear Class-A mic/line preamps with individual phantom power
24-bit/192kHz Conversion	High-resolution AD/DA with up to 130 dB dynamic range
Thunderbolt™ 3 & USB 2.0	Dual connectivity for maximum compatibility and speed
Extensive I/O	30 inputs and 22 outputs, including ADAT, S/PDIF, and monitor outs
Analog Modeling FX	Includes 37+ real-time FX with expandable library
64-bit AFC™ Clocking	Proprietary Acoustically Focused Clocking for ultra-stable jitter-free audio
ReAmp Outputs	2x dedicated outputs for reamping guitar and bass tracks
Software Control Panel	Advanced routing matrix, session presets, and FX management
Talkback & Monitor Control	Built-in talkback mic and dedicated monitor mix section
Zero-Latency Monitoring	Powered by onboard DSP/FPGA engines
Cross-Platform Support	macOS and Windows compatibility



---





🌀

Immersive Audio & Monitoring with MRC

The MRC (Monitor Remote Control) transforms the Orion Studio into a full-featured monitoring hub for immersive formats. Whether you’re mixing in 5.1, 7.1, or Dolby Atmos®, the MRC provides tactile access to multiple speaker sets, input sources, and calibrated levels in real time—essential for today’s immersive sound standards.

Immersive Features Include:

• Speaker Management: Control up to 7.1 speaker arrays

• Monitor Presets: Save/recall calibrated setups for stereo, surround, and Atmos

• Source Switching: Instantly A/B between input streams (DAW, device, external)

• Volume Control: High-resolution rotary encoder for master and group volume

• Talkback Function: Built-in mic for easy artist communication

• Remote Integration: USB connection with Orion for seamless software linking

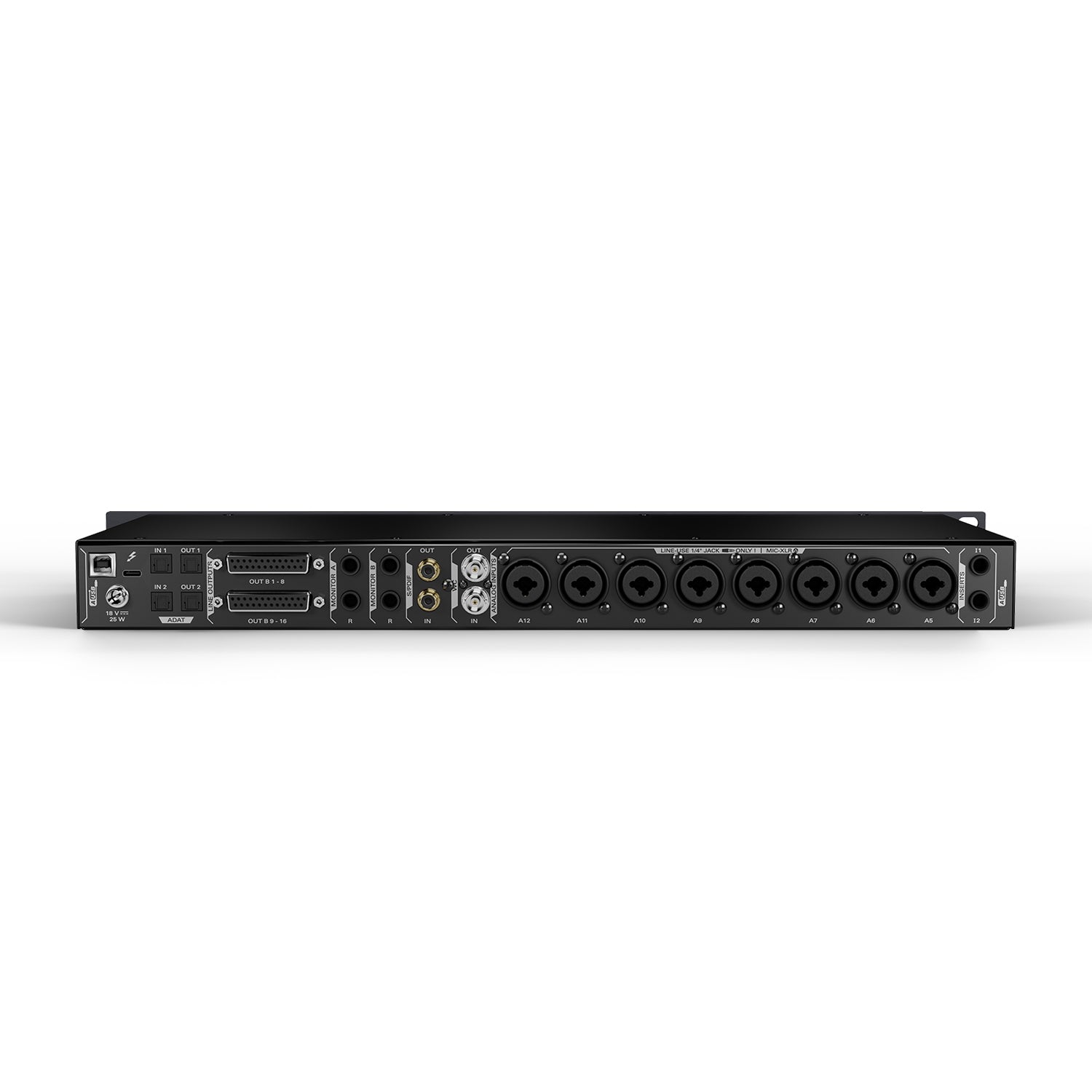

Technical Specifications

Analog Inputs

• Mic/Line/Hi-Z Inputs: 12 x combo XLR/TRS

• Max Input Level (Mic/Line): +20 dBu

• Input Impedance: 8kΩ (mic), 20kΩ (line), 1MΩ (Hi-Z)



Analog Outputs

• Monitor Outputs: 2 x TRS balanced

• Line Outputs: 8 x TRS

• Headphone Outputs: 2 x Stereo TRS (independent)

• ReAmp Outputs: 2 x Unbalanced TS (instrument-level)



Digital I/O

• ADAT: 2 x In, 2 x Out (16 channels total)

• S/PDIF: 1 x In, 1 x Out (stereo)

• Word Clock: 1 x In, 1 x Out (BNC)



Computer Connectivity

• Thunderbolt™ 3: Up to 32 channels of I/O

• USB 2.0: Up to 24 channels of I/O



Preamps

• Type: Discrete transistor-based, ultra-linear

• Gain Range: Up to 65 dB

• Phantom Power: +48V individually switchable



Conversion

• AD Dynamic Range: Up to 121 dB (A-weighted)

• DA Dynamic Range: Up to 130 dB (monitor outputs)

• Sample Rate: 32 kHz – 192 kHz

• Bit Depth: 24-bit



Clocking

• Technology: 64-bit Acoustically Focused Clocking (AFC™)

• Jitter: Sub-picosecond precision



Synergy Core Processing

• Processors: 2 x DSP, 1 x FPGA

• Real-Time FX: 37 included FX (EQs, compressors, guitar amps, reverbs, etc.)

• Expandable: Additional FX available via Antelope Audio Store



Software

• Routing Matrix: 32 x 32 channels with drag-and-drop interface

• Session Recall: Save/load routing, FX, and preamp settings

• Low Latency Mixer: Real-time FX monitoring with near-zero latency



System Requirements

• macOS: 10.14 or later (Intel & Apple Silicon supported)

• Windows: Windows 10 or later (64-bit)

• Ports: Available Thunderbolt™ 3 or USB 2.0 port



---

The Antelope Audio Orion Studio Synergy Core is the ultimate all-in-one audio production interface—equally at home in large-scale sessions, high-end project studios, and hybrid digital/analog environments. Its combination of power, flexibility, and real-time analog-modeled processing makes it a premium choice for today’s modern audio professional.
