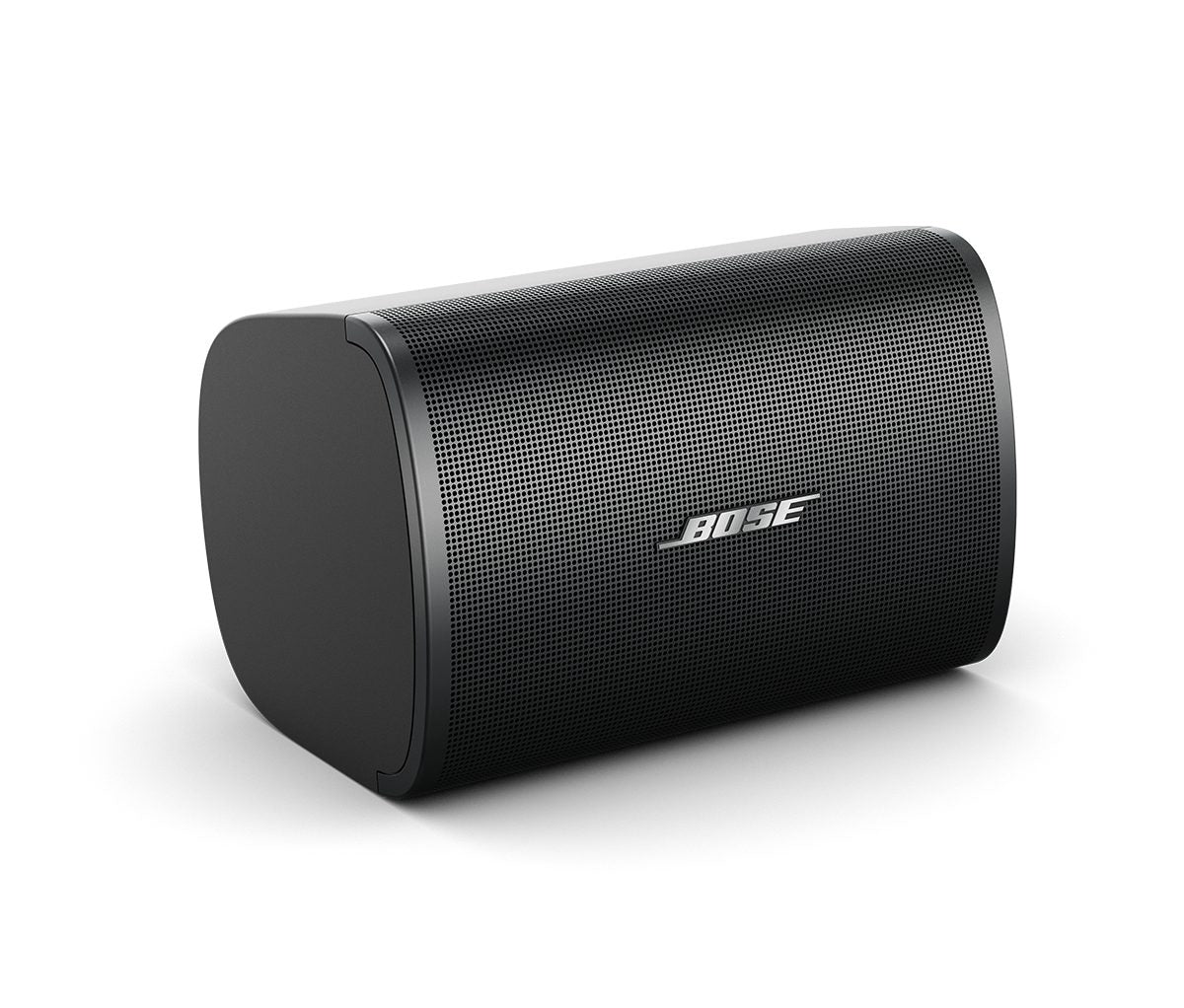

Bose DesignMax DM3SE Surface-Mount Loudspeaker
Call for Price
Bose DesignMax DM3SE Surface-Mount Loudspeaker is available on preorder. For best pricing, project quantity discounts, and installation support, please contact our team.
The Bose DesignMax DM3SE is a compact surface-mount loudspeaker engineered to deliver premium foreground and background music performance for commercial audio environments. Combining elegant industrial design with exceptional sonic clarity, the DM3SE integrates seamlessly into hospitality venues, retail stores, restaurants, conference rooms, lounges, and outdoor-covered installations where aesthetics and performance are equally important.
Designed as part of the acclaimed DesignMax series, the DM3SE features a coaxial two-way driver configuration that provides consistent coverage, detailed vocal reproduction, and balanced full-range audio performance. Its weather-resistant enclosure allows reliable operation in both indoor and protected outdoor applications, making it an ideal choice for modern commercial installations.
With QuickHold mounting technology, installers benefit from faster and safer deployment while maintaining clean cable management and precise speaker positioning. The minimalist appearance and compact footprint allow the loudspeaker to blend naturally into contemporary architectural spaces without compromising acoustic performance.
Key Features
• Premium compact surface-mount loudspeaker for commercial audio installations
• Coaxial 2-way driver design for consistent and balanced sound reproduction
• 3.25-inch woofer with 0.75-inch coaxially mounted tweeter
• Wide 140° horizontal and vertical coverage for even sound distribution
• Weather-resistant enclosure suitable for indoor and protected outdoor use
• QuickHold mounting system for simplified and secure installation
• Clean, modern industrial design that integrates into architectural spaces
• Supports both 70V/100V distributed systems and low-impedance operation
• Excellent speech intelligibility and musical clarity for foreground and background audio
• Available in black and white finishes for flexible interior matching
Why Choose the DesignMax DM3SE?
The DM3SE is designed for integrators and commercial audio professionals who require premium sound quality in a compact and visually refined loudspeaker. Whether installed in luxury retail environments, cafés, restaurants, boutique hotels, meeting rooms, or outdoor terraces, the speaker delivers smooth frequency response and consistent coverage while maintaining an elegant low-profile appearance.
Its versatile mounting system and transformer tap options make it easy to integrate into distributed commercial audio systems, while the weather-resistant design expands installation flexibility across a wide range of venues.
Specifications
|
Specification |
Details |
|---|---|
|
Product Type |
Surface-Mount Commercial Loudspeaker |
|
Frequency Response |
75 Hz – 20 kHz |
|
Frequency Range (-10 dB) |
65 Hz – 25 kHz |
|
Coverage Pattern |
140° × 140° |
|
Power Handling |
30W Continuous |
|
Peak Power Handling |
120W Peak |
|
Sensitivity |
85 dB SPL |
|
Maximum SPL |
100 dB Continuous / 106 dB Peak |
|
LF Driver |
3.25-inch Woofer |
|
HF Driver |
0.75-inch Coaxial Tweeter |
|
Transformer Taps |
1W, 2W, 4W, 8W, 16W, 30W |
|
Low-Impedance Operation |
8 Ohms |
|
Enclosure Rating |
Weather Resistant |
|
Mounting System |
QuickHold U-Bracket |
|
Application |
Indoor / Outdoor Covered Installations |
|
Available Colors |
Black / White |
Ideal Applications
• Restaurants & Cafés
• Retail Stores
• Corporate Offices
• Hospitality Venues
• Lounges & Bars
• Boutique Hotels
• Conference Rooms
• Outdoor Seating Areas
• Commercial Installations
• Premium Background Music Systems
