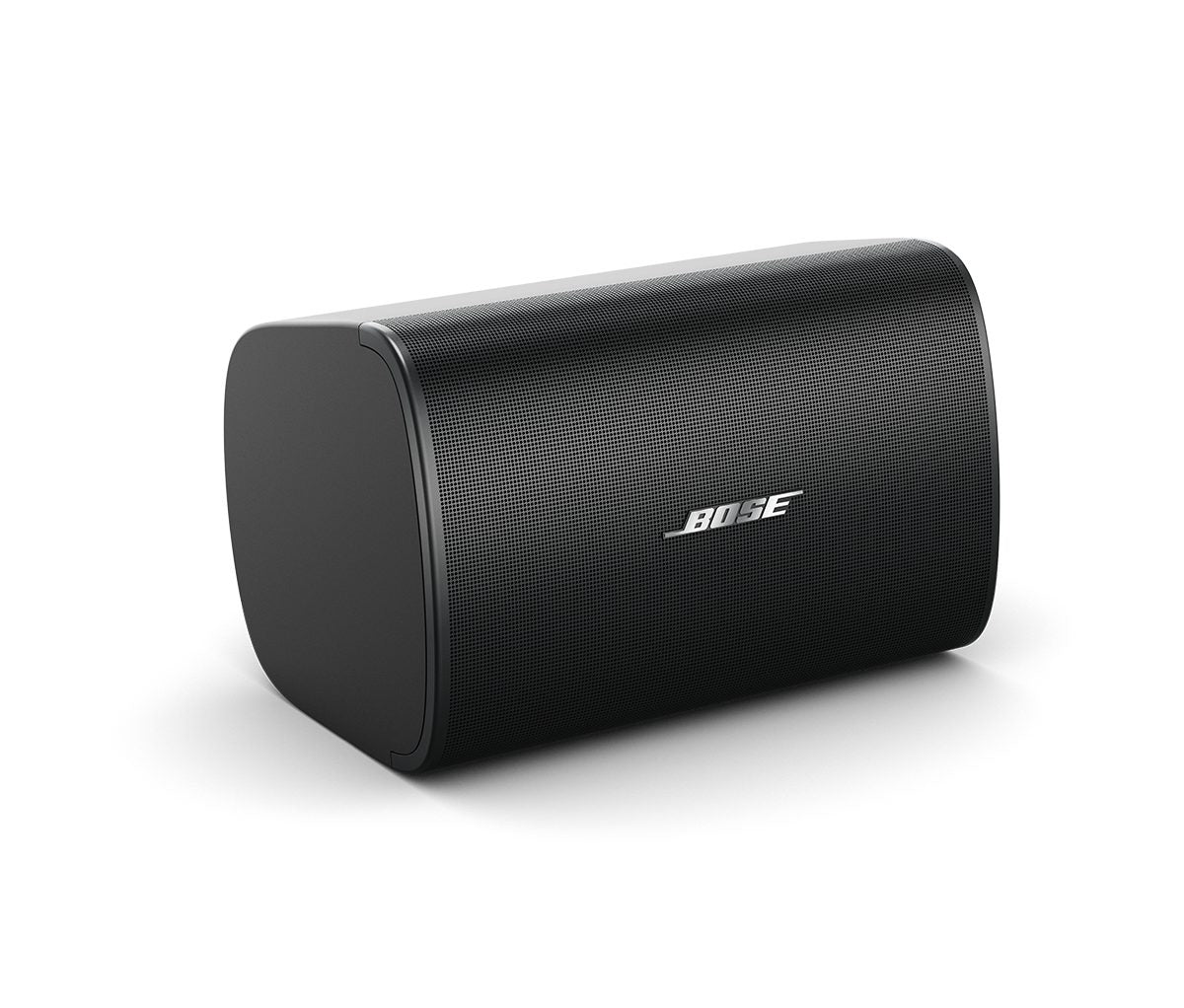

Bose DesignMax DM6SE – Surface-Mount Speaker
Call for Price
Bose DesignMax DM6SE – Surface-Mount Speaker is available on preorder. For best pricing, project quantity discounts, and installation support, please contact our team.
The Bose DesignMax DM6SE is a premium 2-way surface-mount loudspeaker designed for high-performance commercial audio installations where both sound quality and aesthetics matter equally. Part of the acclaimed DesignMax series, the DM6SE delivers rich full-range audio with exceptional vocal clarity, controlled dispersion, and deep musical performance for hospitality venues, restaurants, retail spaces, lounges, corporate environments, and premium residential applications.
Featuring a coaxial 6.5-inch woofer and 1.25-inch compression driver, the DM6SE offers consistent tonal balance and wide coverage while maintaining a sleek, modern appearance that integrates naturally into contemporary interiors. Its weather-resistant enclosure allows for both indoor and outdoor installations, making it a versatile choice for cafés, hotels, terraces, outdoor dining spaces, and luxury commercial environments.
The QuickHold mounting system significantly simplifies installation while reducing setup time, allowing integrators to achieve a clean and professional finish with minimal effort. With support for both low-impedance and distributed audio systems, the DesignMax DM6SE provides flexibility for a wide range of system designs.
Whether used for background music or higher-output foreground audio applications, the DM6SE delivers the premium sonic signature and installation reliability expected from Bose Professional loudspeakers.
Key Features
• 125W continuous power handling for professional commercial audio applications
• 6.5-inch woofer with coaxial 1.25-inch compression driver
• Wide and consistent coverage for uniform sound distribution
• Elegant low-profile enclosure for premium architectural integration
• IP55 weather-resistant rating for indoor and outdoor installations
• QuickHold mounting system for faster and safer installation
• Operates without DSP or EQ for simplified deployment
• Euroblock connector support for professional AV integration
• Available in black and white finishes
• Ideal for hospitality, retail, cafes, restaurants, lounges, and corporate spaces
Premium Specifications
|
Specification |
Details |
|---|---|
|
Product Type |
Surface-Mount Loudspeaker |
|
Frequency Response |
59 Hz – 20 kHz |
|
Coverage Pattern |
125° Conical |
|
Power Handling |
125W Continuous |
|
Peak Power |
500W |
|
Sensitivity |
90 dB SPL |
|
Maximum SPL |
111 dB Continuous / 117 dB Peak |
|
LF Driver |
6.5-inch Woofer |
|
HF Driver |
1.25-inch Compression Driver |
|
Nominal Impedance |
8 Ohms |
|
Transformer Taps |
70V/100V Multi-Tap |
|
Outdoor Rating |
IP55 |
|
Mounting System |
QuickHold U-Bracket |
|
Connectivity |
Euroblock Connector |
|
Enclosure Material |
Engineered Polypropylene |
|
Application |
Commercial Audio Installation |
|
Available Colors |
Black / White |
Applications
• Restaurants & Cafes
• Hotels & Hospitality Venues
• Retail Stores & Shopping Spaces
• Corporate Meeting Rooms
• Bars & Lounges
• Outdoor Dining Areas
• Premium Residential Installations
• Fitness Studios & Wellness Spaces
Why Choose the DM6SE?
The DM6SE is engineered for projects where aesthetics, installation speed, and sonic performance are equally important. Its premium industrial design, wide coverage, and balanced acoustic response make it a preferred solution for modern commercial AV environments requiring reliable and consistent sound performance.
