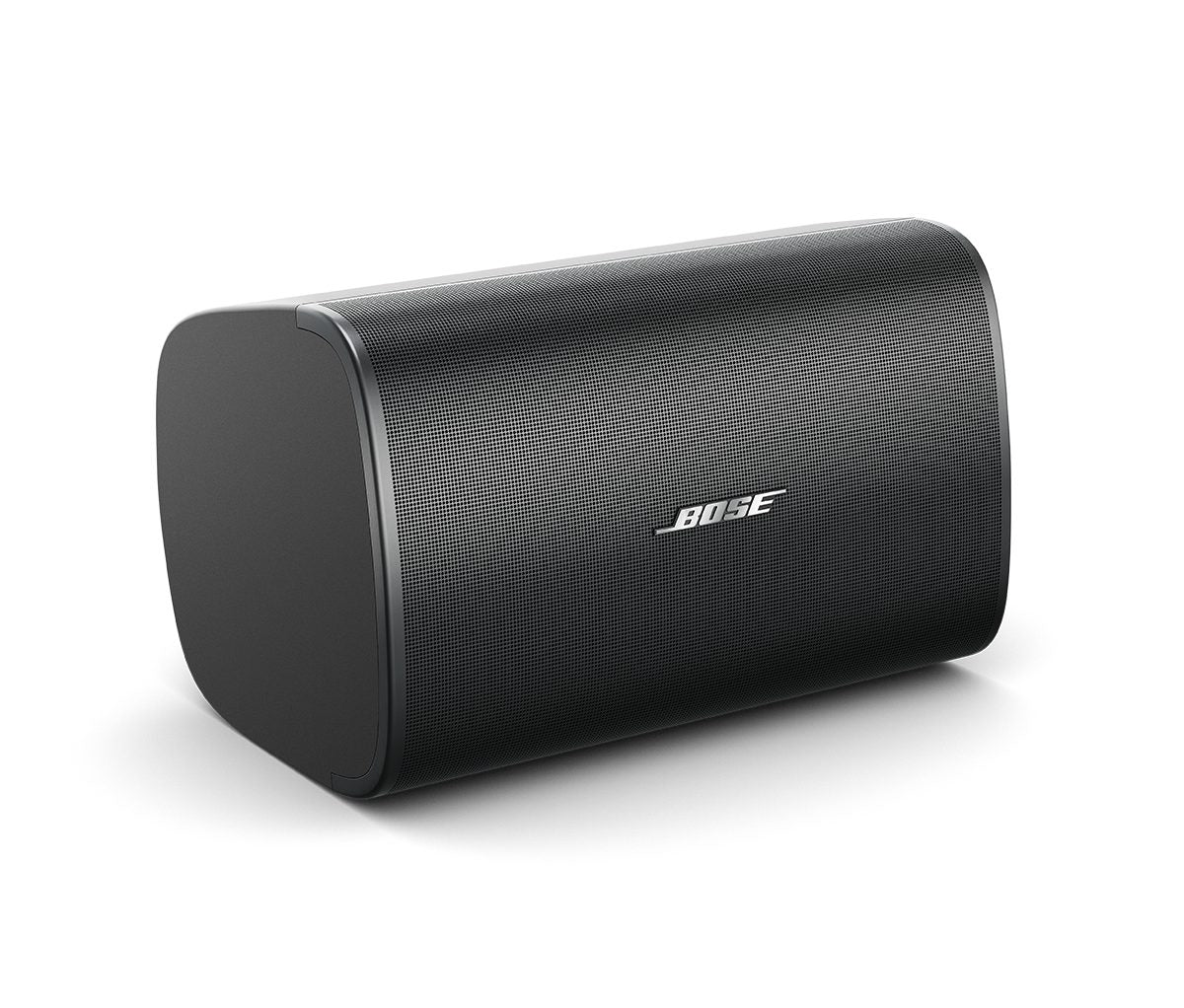

Bose DesignMax DM8SE Surface-Mount Loudspeaker

Available on Order

Call for Price

Bose DesignMax DM8SE Surface-Mount Loudspeaker is available on preorder. For best pricing, project quantity discounts, and installation support, please contact our team.

Best For Retail, hospitality, offices, commercial AV
Support Project pricing & system design assistance
Supply Preorder basis, subject to availability

The Bose DesignMax DM8SE is a high-performance surface-mount loudspeaker engineered for premium foreground and background music applications in hospitality venues, retail stores, restaurants, lounges, conference spaces, and commercial installations. Combining refined industrial design with powerful acoustic performance, the DM8SE delivers rich low-frequency response, detailed vocal clarity, and consistent coverage for demanding professional audio environments.

Featuring an 8-inch woofer paired with a coaxially mounted compression driver, the DM8SE offers impressive output with balanced tonal response and smooth off-axis performance. Bose Dispersion Alignment technology ensures a consistent listening experience throughout the coverage area, making it ideal for distributed audio systems requiring high intelligibility and musical detail.

Designed for both indoor and outdoor use, the DM8SE includes an IP55-rated enclosure for protection against weather and environmental conditions. The QuickHold mounting system simplifies installation while maintaining a clean and premium architectural appearance.

Whether used in restaurants, cafes, bars, fitness centers, luxury retail, or corporate environments, the DesignMax DM8SE integrates seamlessly into modern commercial spaces while delivering the signature Bose sound quality trusted by professional integrators worldwide.


Key Features

• 2-way coaxial surface-mount loudspeaker with premium commercial audio performance
• 8-inch woofer with coaxially mounted compression driver for full-range sound
• Wide and consistent coverage with Bose Dispersion Alignment technology
• High SPL capability suitable for foreground music applications
• IP55-rated weather-resistant enclosure for indoor and outdoor installations
• QuickHold mounting system for fast and secure installation
• Elegant low-profile cabinet design for modern architectural environments
• Transformer bypass and selectable tap settings for 70V/100V distributed systems
• Euroblock connectors simplify professional installation wiring
• Available in black and white finishes for design flexibility


Specifications

Specification
Details
Product Type
2-Way Coaxial Surface-Mount Loudspeaker
Low Frequency Driver
8-inch Woofer
High Frequency Driver
Compression Driver
Coverage Pattern
125° x 125°
Frequency Range
52 Hz – 20 kHz
Power Handling
125W Continuous
Peak Power Handling
500W Peak
Sensitivity
91 dB SPL
Maximum SPL
112 dB Continuous / 118 dB Peak
Transformer Taps
70V / 100V with Bypass
Weather Rating
IP55 Rated
Mounting System
QuickHold U-Bracket
Applications
Hospitality, Retail, Restaurants, Cafes, Corporate Spaces, Fitness Centers, Outdoor Commercial Installations
Available Colors
Black / White


Why Choose the DesignMax DM8SE?

The DM8SE combines premium aesthetics, installation flexibility, and powerful full-range audio performance into a single compact loudspeaker system. Its modern architectural appearance allows it to blend naturally into commercial environments while delivering the output and clarity required for professional foreground music applications.

From boutique hospitality venues to large-scale retail environments, the Bose DesignMax DM8SE provides a refined audio solution trusted by system integrators and AV professionals worldwide.
