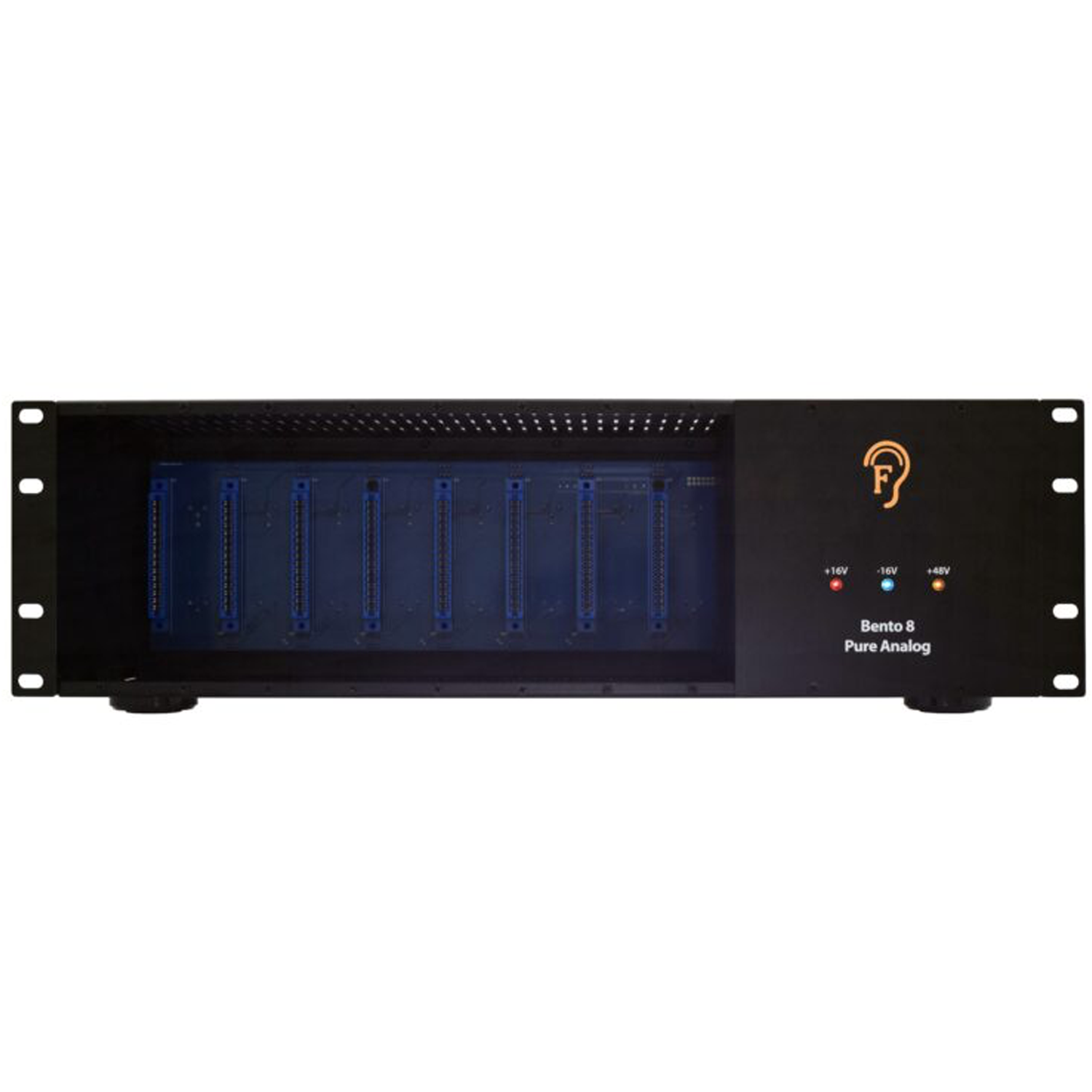

Fredenstein Bento 8, High-Power, Low-Noise 8-slot 500 Series Chassis

8-slot 500 Series Chassis with Onboard Audio Routing; Compressor Buss Linking; Clean, High-power Topology; and Extensive Mains Transformer Shielding

Sale priceRs. 53,800.00

Tax included.

The Fredenstein Bento 8 features a complete linear power supply consisting of a mains transformer and linear regulators. This topology yields the cleanest power to your modules.
Usually linear power supplies can't deliver high output currents, but Bento 8 outputs +/-16V DC 2A and +48V DC 0.25A, 500mA per slot, that's ample power for the most demanding 500 series modules!

Another drawback of linear supplies is that they are prone to introduce hum magnetically from the mains transformer directly into input and output transformer inside modules, especially when plugged into the slot closest to the supply. Bento 8 incorporates extensive magnetic shielding of the mains transformer to eliminate induced hum.

The Bento 8 is constructed of the highest grade components:
1.5mm (59 mil) Steel Chassis, Toroidal mains transformer with two built-in thermal fuses, all electrolytic capacitors are made by Nichicon and are rated for 105°C(221°F), etc.


Fredenstein Bento 8 Pure Analog 500 Series Chassis Features:

  • 8-slot 500 Series rack with clean power topology
  • High power: outputs ±16V DC 2A and +48V DC 0.25A, 500mA per slot
  • Extensive mains transformer shielding to eliminate induced hum
  • Constructed of the highest grade components
  • 1.5mm (59-mil) steel chassis
  • Toroidal mains transformer with 2 built-in thermal fuses
  • High-quality Nichicon electrolytic capacitors

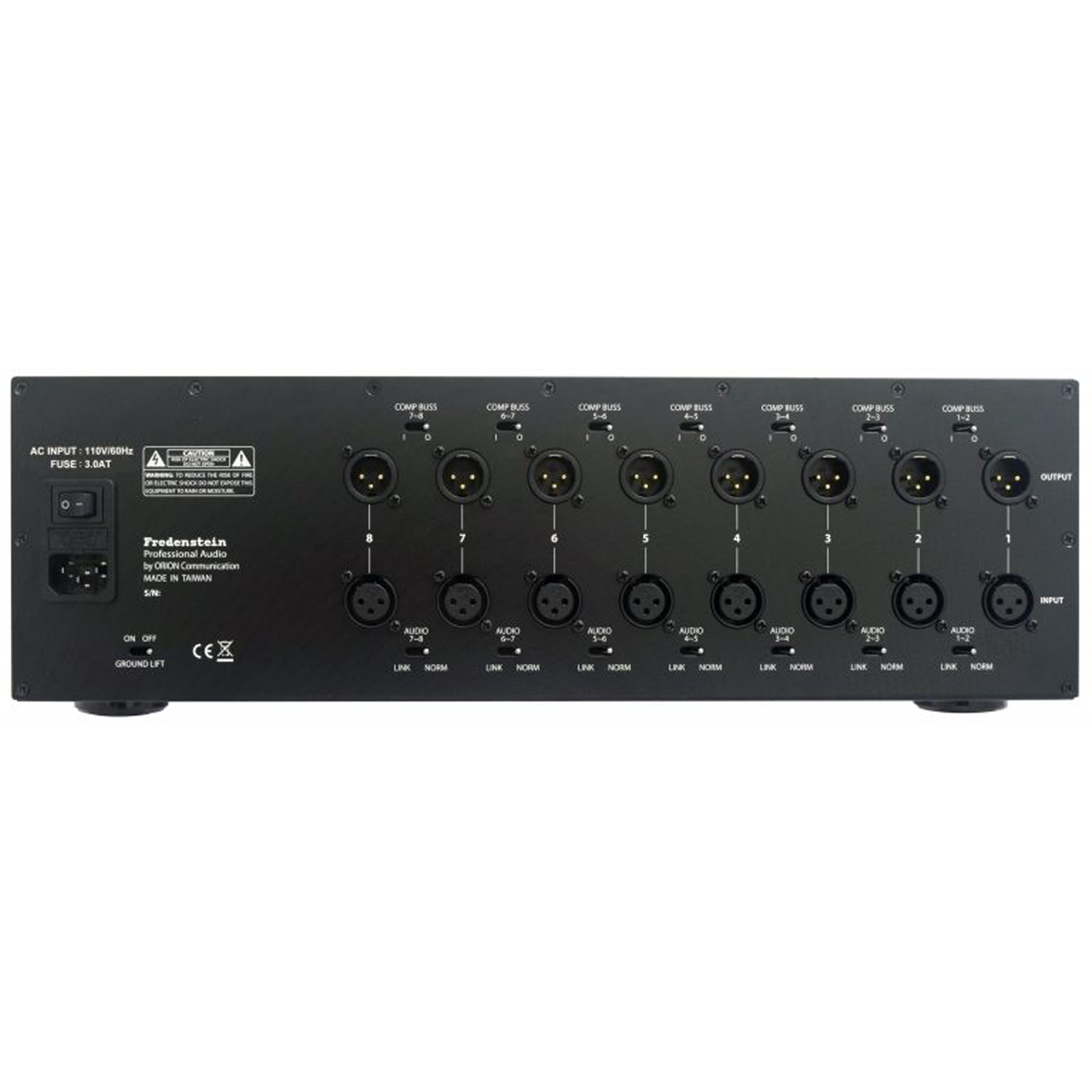

  • Ability to daisy-chain modules by simply flipping switches on the back panel
  • Ability to link compressor modules by engaging switches on the rear panel
  • Ground-lift switch
