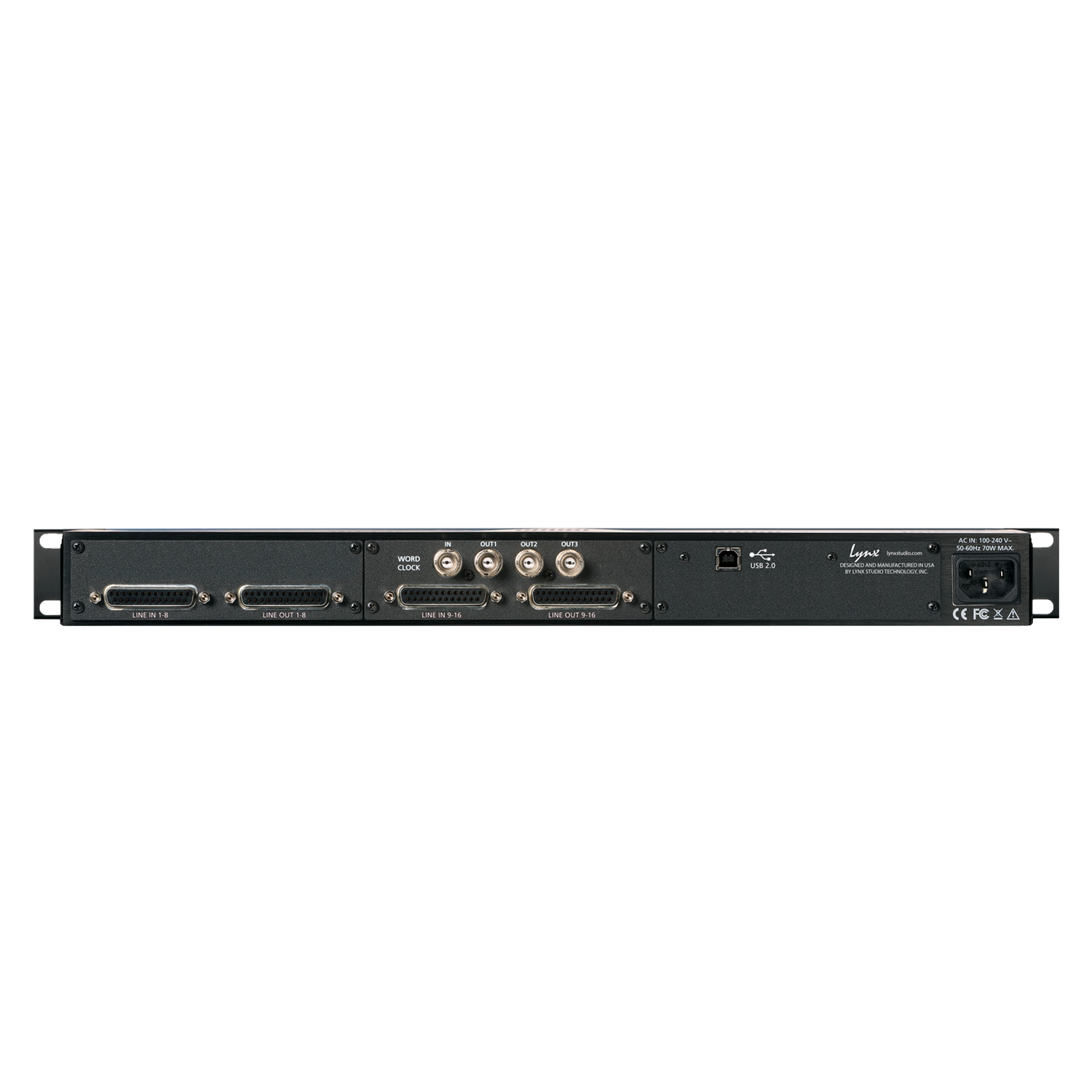

Lynx Aurora (n) USB | AD/DA Converter
Product Description
The Lynx Aurora (n) USB is a high-performance AD/DA converter designed for professional audio engineers, recording studios, and mastering facilities. Renowned for its transparency, low distortion, and wide dynamic range, the Aurora (n) integrates seamlessly into any digital audio workflow. With USB connectivity and modular I/O configurations, it offers flexible routing, real-time monitoring, and high channel counts — all within a compact 1U rackmount unit. Built in the USA, the Aurora (n) continues Lynx’s tradition of delivering uncompromising audio quality backed by robust engineering.
Product Features
• Mastering-grade AD/DA conversion with ultra-low noise and distortion
• USB 2.0 interface with support for up to 16 channels I/O
• Word clock I/O and support for external clocking
• Real-time monitoring with ultra-low latency
• Modular and expandable with options for additional I/O (Dante, Thunderbolt, Pro Tools | HD)
• Onboard microSD recorder (select models) for standalone tracking
• Intuitive front-panel touchscreen display for metering and configuration
• Custom-designed FPGA-based LYNX Mixer for powerful internal routing
• Designed and manufactured in the USA with premium components
Product Specifications
|
Specification |
Details |
|---|---|
|
AD/DA Conversion |
24-bit / 192 kHz |
|
Dynamic Range (A/D & D/A) |
117 dB to 120 dB (model dependent) |
|
THD+N |
< 0.0002% |
|
Latency |
< 1 ms (round trip, depending on setup) |
|
USB Interface |
USB 2.0, up to 16 channels |
|
Word Clock I/O |
In, Out, and Thru |
|
Internal Mixer |
16-channel LYNX Mixer (FPGA based) |
|
I/O Options |
Modular: AES, ADAT, Thunderbolt, Dante, HDX |
|
Dimensions |
19” x 1.75” x 10” (1U Rackmount) |
|
Power Supply |
Internal, Auto-sensing 90–240V AC |
