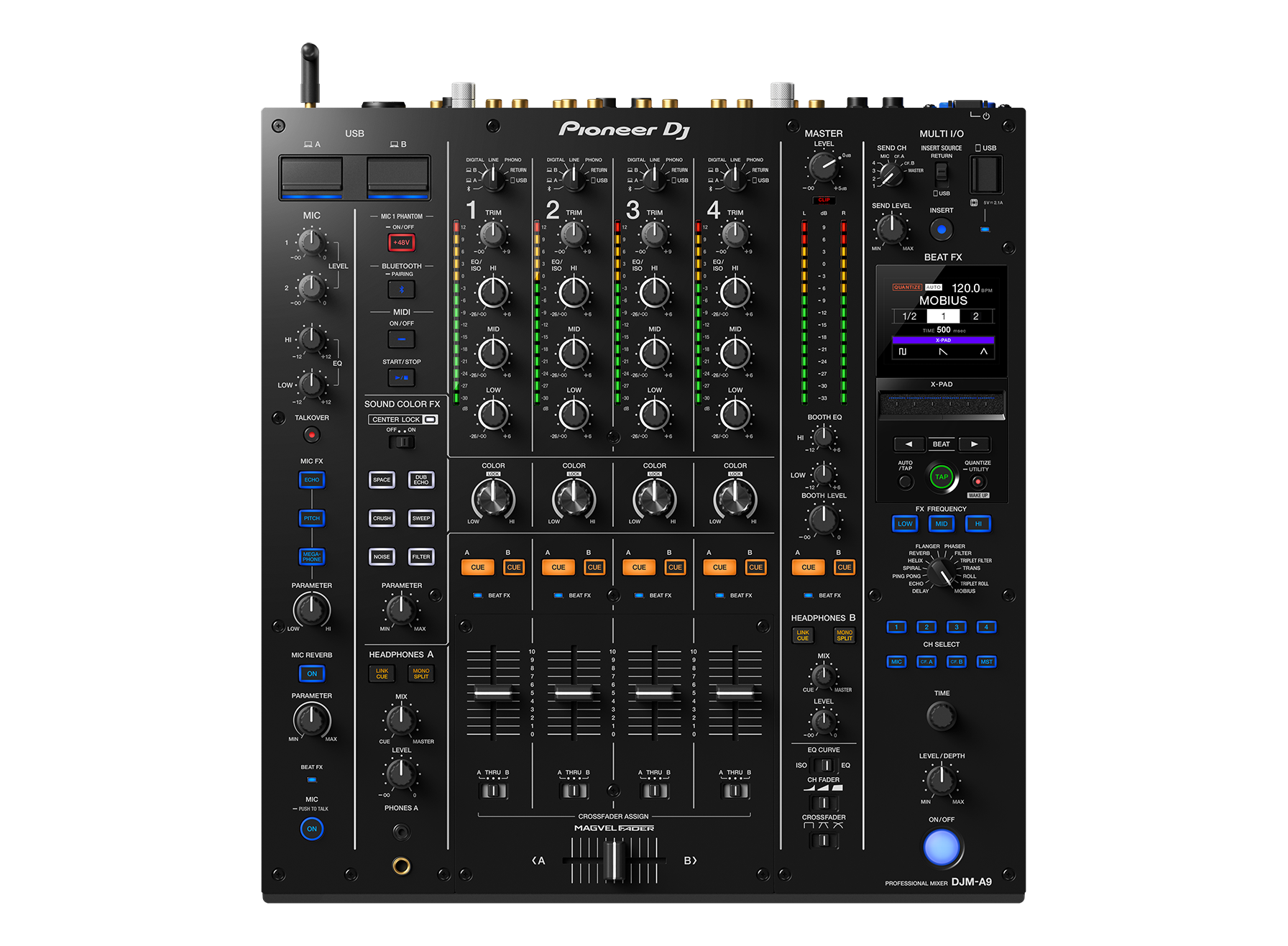

Pioneer DJ DJM-A9 4-Channel Professional DJ Mixer

The Next-Generation Club Standard — Bigger Sound, Deeper Control, More Creative Freedom

Step behind the Pioneer DJ DJM-A9, and you're not simply mixing tracks — you're taking command of the entire dancefloor.

Built as the next-generation successor to the legendary DJM-900NXS2, the DJM-A9 4-channel professional DJ mixerraises the benchmark for club, festival, touring, and high-end DJ performance. Pioneer DJ combines ESS Technology 32-bit converters, 14 Beat FX, 6 Sound Color FX, Center Lock, an upgraded MAGVEL FADER, Bluetooth audio, dual USB-C/USB-B connectivity, dual independent headphone monitoring, phantom-powered microphone input, and PRO DJ LINK in one formidable performance centerpiece.

The familiar DJM workflow remains exactly where professional DJs expect it — but nearly everything around it has evolved.

More space. Better visibility. Smoother control. More connectivity. And above all, seriously refined sound.

For DJs who want the mixer found at the heart of serious professional booths, the DJM-A9 is built to deliver.

Four channels. One dancefloor. Total control.

Key Features

• Professional 4-channel club DJ mixer

• Successor to the industry-standard DJM-900NXS2

• Premium ESS Technology 32-bit A/D and D/A converters

• 20 Hz–40 kHz frequency response

• 114 dB S/N ratio via USB/Digital input

• Redesigned channel layout with increased control spacing

• Upgraded channel faders for smooth professional mixing

• Third-generation MAGVEL FADER crossfader

• 3-band EQ/Isolator on each channel

• 6 Sound Color FX

• World's-first Center Lock function for Sound Color FX

• 14 Beat FX

• 3 new Beat FX: Mobius, Triplet Filter, and Triplet Roll

• Color Beat FX display

• Redesigned horizontal X-Pad

• Dedicated Beat FX channel-selection buttons

• Advanced Multi I/O with true send capability

• Dual independent headphone monitoring systems

• 2-band Booth EQ

• Bluetooth audio input

• Dual USB Type-C connectivity

• Dual USB Type-B connectivity

• Two-computer connection for seamless DJ changeovers

• 2 microphone inputs

• Phantom-powered condenser microphone support

• Dedicated microphone Echo, Pitch, and Megaphone effects

• Dedicated microphone Reverb

• Push To Talk microphone function

• Option to exclude microphone audio from recording output

• 4 digital inputs

• 4 line inputs

• 4 phono inputs

• XLR and RCA master outputs

• Digital master output

• PRO DJ LINK connectivity

• Built-in Wi-Fi for compatible Stagehand workflows

• rekordbox compatible

• Serato DJ Pro/DVS ready

• djay Pro/DVS ready

• DJM-REC compatible

• ShowKontrol and PRO DJ LINK Bridge support

• Lockable power cord design

• Professional 10.2 kg construction

32-bit ESS Converters — Hear What Your Music Is Really Capable Of

A club mixer can have every feature imaginable, but none of it matters if the sound isn't right.

That's why audio performance sits at the heart of the DJM-A9.

Pioneer DJ equipped the channel input section with a premium 32-bit A/D converter from ESS Technology, while the master and booth output sections use high-quality 32-bit ESS D/A converters.

The result is detailed, natural, high-resolution reproduction designed for professional sound systems where every kick, bassline, vocal, transient, and atmospheric layer matters.

And the improvement isn't limited to the master output.

The microphone and headphone circuitry has also been refined using carefully selected components and optimized circuit design.

Whether you're playing through nearfield monitors at home or pushing a festival-sized PA system, the DJM-A9 is engineered to preserve the energy and detail inside your music.

Built for the Modern Club Sound

Modern electronic music can be enormous.

Sub-bass goes deeper. Masters hit harder. Transients are sharper. Arrangements are denser.

The DJM-A9's EQ and isolator response has been optimized with contemporary music production in mind, giving DJs musical control over today's powerful, full-range productions.

From deep house and techno to hip-hop, drum & bass, Afro house, EDM, trance, open-format, and beyond, the A9 gives you the headroom and control to build clean transitions without sacrificing impact.

Evolved DJM Layout — Familiar, but Better

Professional DJs don't want to relearn their mixer every time they enter a booth.

That's why the DJM-A9 retains the familiar philosophy of the DJM series while improving the physical experience.

Pioneer DJ increased the spacing around the EQ controls, giving your fingers more room to make fast adjustments during aggressive transitions.

High-visibility channel LEDs provide clearer level information, while upgraded channel faders deliver a smoother feel than the previous DJM-900NXS2.

It's familiar enough to feel like home.

Refined enough to feel new.

Third-generation MAGVEL FADER — Built to Be Played Hard

Smooth blends?

Absolutely.

Fast cuts?

Go for it.

Scratching?

That's where the third-generation MAGVEL FADER crossfader comes into its own.

Designed for smooth movement and stable operation, the crossfader gives DJs the tactile response needed for both long-form club mixing and aggressive performance techniques.

Combined with the upgraded channel faders, the DJM-A9 feels less like a utility between two decks and more like an instrument.

Sound Color FX + Center Lock — Twist Hard Without Crossing the Line

The DJM series' Sound Color FX have become essential creative tools for professional DJs.

The DJM-A9 includes 6 Sound Color FX:

• Space

• Dub Echo

• Sweep

• Noise

• Crush

• Filter

But the real innovation is Center Lock.

When Center Lock is enabled, the Sound Color FX knob physically stops at its center position.

Why does that matter?

Because during a high-energy transition, you can aggressively sweep an effect back toward neutral without accidentally overshooting the center and activating the opposite side of the effect.

Want the traditional behavior?

Turn Center Lock off.

Simple.

Brilliant.

Extremely useful live.

14 Beat FX — Turn Transitions into Performances

This is where the DJM-A9 gets seriously addictive.

You get 14 Beat FX, giving you an enormous creative palette for transitions, buildups, drops, breakdowns, rhythmic manipulation, and live remixing.

The collection includes classic DJM favorites alongside three newer effects:

Mobius

Creates a continuously rising or falling oscillator synchronized with the beat — perfect for building seemingly endless tension.

Triplet Filter

Moves the filter cutoff rhythmically using a triplet-based pattern for more complex, rolling movement.

Triplet Roll

Creates rhythmic repeated audio based around triplet timing, opening the door to more unconventional fills and transitions.

The result?

Your mixer isn't simply connecting tracks.

It's becoming part of the performance.

New Color Beat FX Display + X-Pad

Effects are powerful only when you can control them quickly.

The DJM-A9 upgrades the Beat FX interface with a color display that provides clearer visual feedback about your selected effect and its current status.

Below it sits the redesigned horizontal X-Pad.

Slide your finger across it to manipulate Beat FX timing and parameters intuitively during a performance.

Dedicated channel-selection buttons also make it faster to route Beat FX exactly where you want them.

Less menu thinking.

More muscle memory.

True Send Capability — Bring External FX into the Game

Want to add an external effects processor to your setup?

The DJM-A9's enhanced Multi I/O section features an independent channel selector, enabling external effects to operate separately from the mixer's built-in Beat FX.

This gives the DJM-A9 true send capability.

Connect compatible processors, delay pedals, performance effects, or equipment such as the RMX-1000 and route the processed audio into a separate mixer channel.

For DJs building complex performance systems, this massively expands what's possible.

Bluetooth Input — Put Any Phone into Any Channel

Someone sends you a track five minutes before your set.

The promoter needs an announcement played.

You've got an emergency backup track on your phone.

No problem.

The DJM-A9 includes Bluetooth audio input, allowing compatible smartphones and other Bluetooth devices to send audio wirelessly to the mixer.

Better still, the Bluetooth signal can be routed to any channel.

Once it's there, you can use the DJM-A9's EQ, faders, Sound Color FX, and other mixing tools to manipulate it like another source.

A small feature?

Until the moment you desperately need it.

Dual USB-C + Dual USB-B — Made for B2B Sets

Changeovers shouldn't mean silence.

The DJM-A9 provides two USB Type-C and two USB Type-B connections, allowing two compatible PC/Mac systems to be connected simultaneously.

That makes it ideal for:

• DJ changeovers

• Back-to-back sets

• Festival stages

• rekordbox setups

• Serato DJ Pro setups

• Touring systems

• Multi-DJ club booths

DJ #2 can connect and prepare while DJ #1 is still performing.

Then switch.

No cable panic.

No unnecessary interruption.

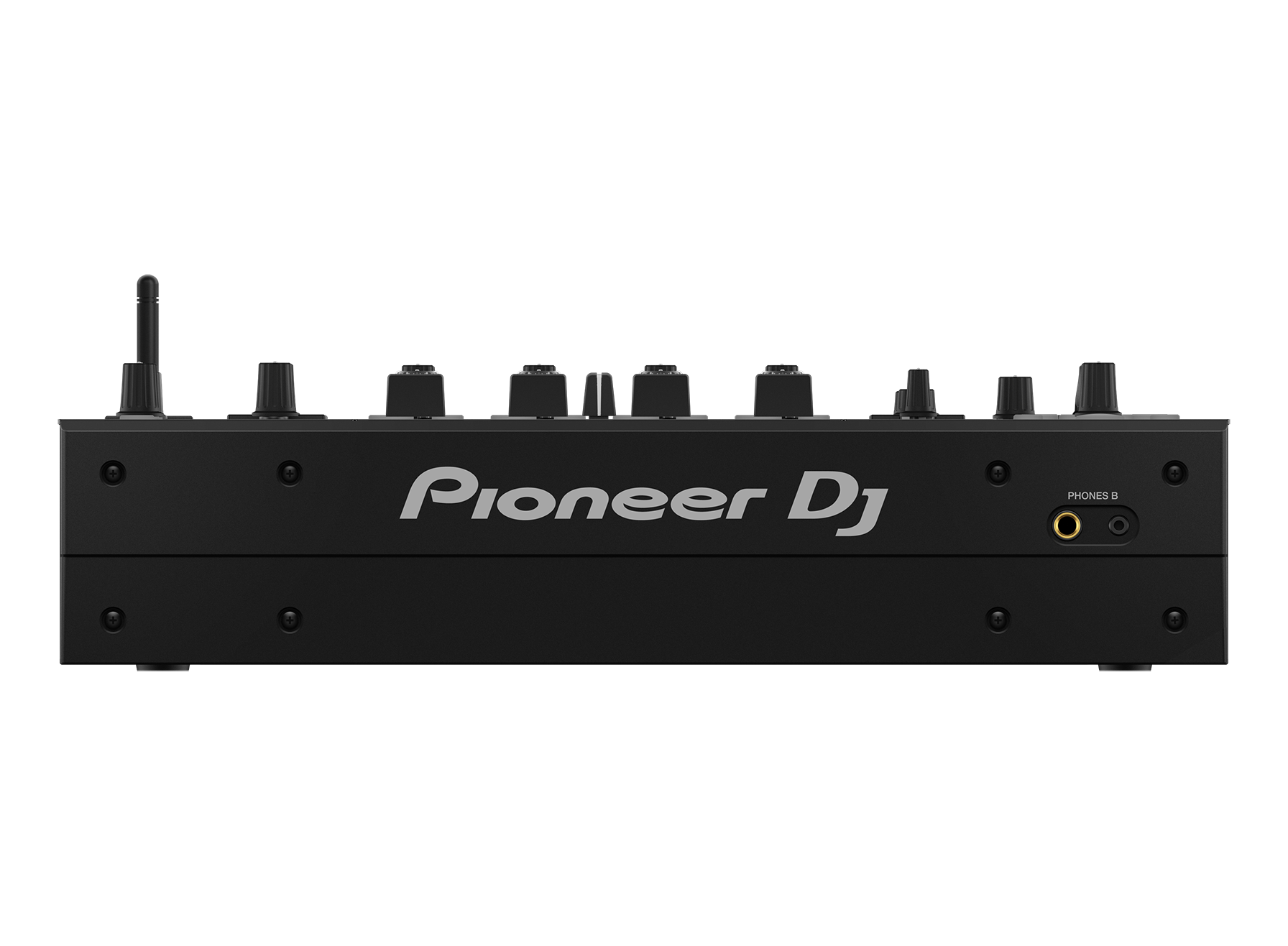

Two DJs. Two Headphone Systems.

B2B DJs know the problem.

Two performers.

One headphone cue section.

The DJM-A9 fixes it with dual independent headphone outputs.

Each DJ gets independent:

• Cue selection

• Headphone level

• Cue/Master mix balance

That means two DJs can monitor different channels simultaneously.

For B2B performances, club changeovers, and multi-artist events, this is one of those features that quickly becomes difficult to live without.

2-band Booth EQ — Fix the Booth Without Touching the Dancefloor

The booth doesn't always sound like the room.

That's why the DJM-A9 includes a dedicated 2-band Booth EQ.

Adjust the high and low frequencies feeding your booth monitors without changing the main mix being heard by the audience.

Too much bass behind the decks?

Reduce it.

Booth monitors too bright?

Tame the highs.

The crowd keeps the master mix.

You get the monitoring environment you need.

A Serious Microphone Section for DJs, MCs & Livestreaming

The DJM-A9 gives microphone performance a major upgrade.

It provides 2 microphone inputs, with MIC 1 supporting a compatible condenser microphone via phantom power.

That means professional vocal and broadcast microphones can be integrated directly into the mixer without necessarily requiring an additional external microphone preamp.

For MCs, livestreamers, radio-style shows, event DJs, and performers using vocals as part of their set, that's a substantial upgrade.

Microphone FX — Your Voice Becomes Part of the Set

The DJM-A9 includes dedicated microphone effects:

• Echo

• Pitch

• Megaphone

• Reverb

Transform an announcement.

Build an MC vocal into the drop.

Create an exaggerated megaphone effect.

Add atmosphere with reverb.

Or shift the vocal pitch for creative performance.

Your microphone doesn't have to sit outside the music.

It can become part of it.

Push To Talk — Speak Only When You Mean To

Need to make a quick announcement?

Press and hold Push To Talk.

The microphone is active while you're holding the control and switches back when you're finished.

This gives DJs a fast, practical way to communicate with the audience without constantly toggling microphone settings.

Even better, microphone audio can be excluded from the recording output.

So you can hype the live crowd while capturing a clean DJ mix without the MC commentary.

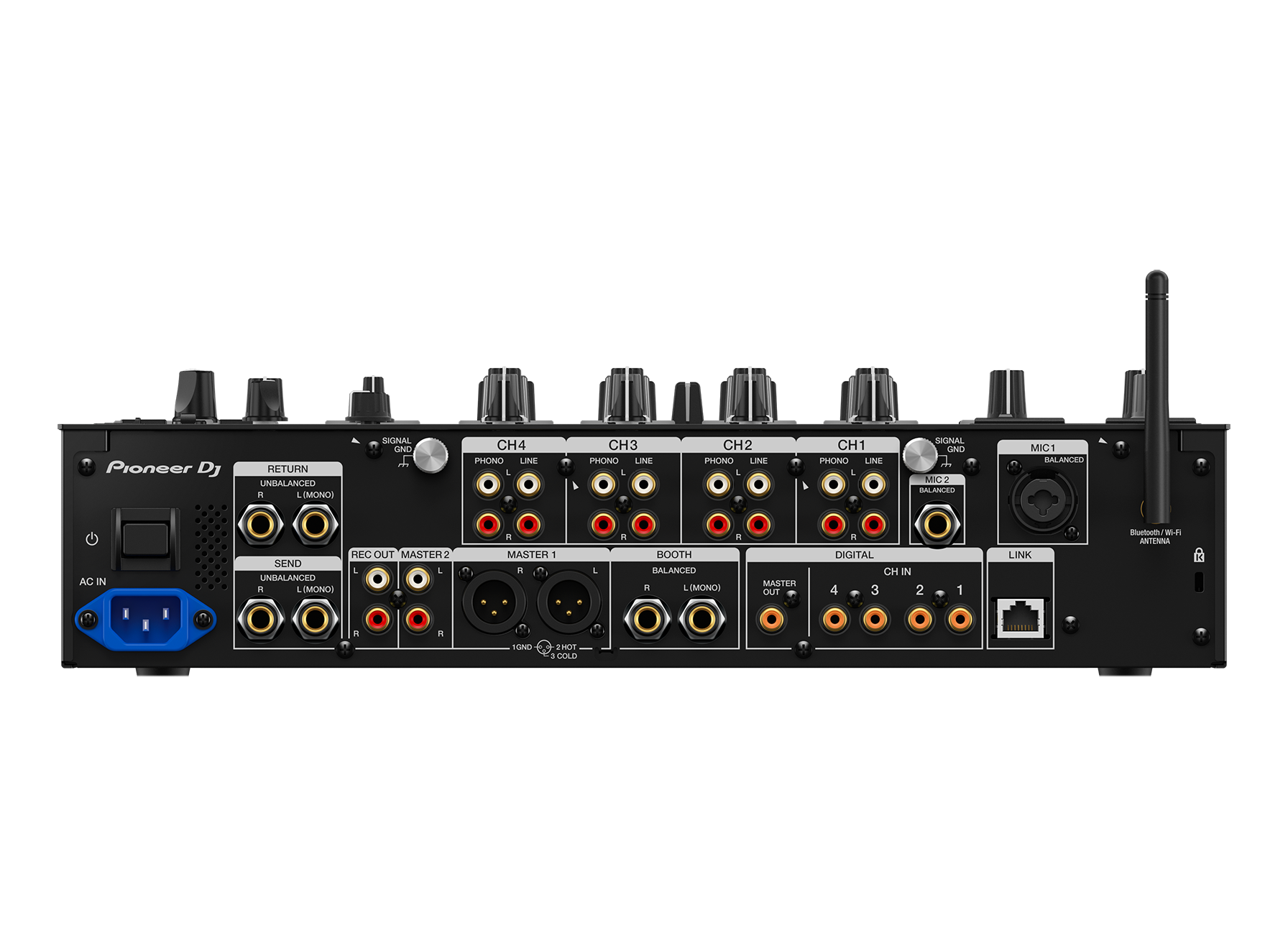

4 Digital + 4 Line + 4 Phono Inputs

Professional booths need options.

The DJM-A9 gives you plenty.

Connect:

• CDJs and professional digital players

• Turntables

• Line-level players

• Computers

• External processors

• Microphones

• Bluetooth devices

With 4 coaxial digital inputs, 4 RCA line inputs, and 4 RCA phono inputs, the DJM-A9 can become the central hub of an extremely sophisticated DJ system.

Vinyl?

Digital?

Hybrid?

The A9 doesn't care.

Bring it all.

PRO DJ LINK + Stagehand Support

The DJM-A9 isn't only designed for the DJ.

It's built for the production team behind the show.

With PRO DJ LINK networking and compatibility with Stagehand, front-of-house teams can remotely monitor useful mixer information from a compatible iPad connected through the appropriate network infrastructure.

This can help engineers understand what's happening in the booth without repeatedly interrupting the DJ.

For festivals, large clubs, tours, and professional production environments, that's a serious operational advantage.

rekordbox, Serato DJ Pro & djay Pro Ready

The DJM-A9 fits naturally into professional software-based workflows.

Compatible platforms include:

• rekordbox

• Serato DJ Pro

• djay Pro

DVS workflows are supported with compatible software, licenses, subscriptions, players, and turntables.

Whether you're playing from CDJs, using control vinyl, connecting laptops, or creating a hybrid performance system, the DJM-A9 is ready to sit at the center of it.

Pioneer DJ DJM-A9 Technical Specifications

Specification	Details
Product Type	4-channel Professional DJ Mixer
Channels	4
A/D Conversion	32-bit ESS Technology
Frequency Response	20 Hz–40 kHz (LINE)
S/N Ratio – USB/Digital	114 dB
S/N Ratio – LINE	105 dB
S/N Ratio – PHONO	88 dB
S/N Ratio – MIC	79 dB
Total Harmonic Distortion	0.005% (LINE–MASTER1)
Digital Inputs	4 × Coaxial
Line Inputs	4 × RCA
Phono Inputs	4 × RCA
Microphone Inputs	2
MIC 1	XLR / 1/4-inch TRS combo
MIC 2	1/4-inch TRS
Condenser Mic Support	Yes
Master Outputs	XLR × 1, RCA × 1
Booth Output	1/4-inch TRS
Record Output	RCA
Digital Master Output	Coaxial
Headphone Connections	2 × 1/4-inch + 2 × 3.5 mm
USB Type-A	1
USB Type-B / Type-C	2 sets
Bluetooth Input	Yes
Send	1 × 1/4-inch TS
Return	1 × 1/4-inch TS
Network	100BASE-TX LAN
Sound Color FX	6
Beat FX	14
Mic FX	Echo, Pitch, Megaphone + Reverb
Crossfader	Third-generation MAGVEL FADER
Booth EQ	2-band
Compatible DJ Software	rekordbox, Serato DJ Pro, djay Pro
FOH / Visual Integration	Stagehand, ShowKontrol, PRO DJ LINK Bridge
Power Consumption	46 W
Dimensions (W × D × H)	407.4 × 458.3 × 107.9 mm
Weight	10.2 kg

Who Should Buy the Pioneer DJ DJM-A9?

The DJM-A9 is built for demanding professional environments, including:

• Professional club DJs

• Touring DJs

• Nightclubs

• Festivals

• DJ rental companies

• Event production companies

• DJ academies

• Premium home DJ setups

• B2B DJ performances

• Turntablists

• Vinyl + digital hybrid setups

• rekordbox users

• Serato DJ Pro users

• Livestreaming setups

• Radio and broadcast-style DJ studios

What's in the Box?

• Pioneer DJ DJM-A9 4-channel professional DJ mixer

• Power cord

• Quick Start Guide

• Precautions for Use documentation

Included accessories can vary by market or region.

DJM-A9 — The Mixer at the Center of the Performance

The Pioneer DJ DJM-A9 takes everything DJs loved about the classic club-standard DJM workflow and pushes it into a more powerful generation.

The layout feels familiar.

But the sound is more refined.

The controls have more breathing room.

The faders feel smoother.

The effects go deeper.

The connectivity is dramatically expanded.

And features such as Center Lock, 14 Beat FX, dual independent headphone monitoring, Bluetooth routing, dual USB-C/USB-B computer connectivity, phantom-powered microphone support, true external FX send capability, PRO DJ LINK, and 32-bit ESS conversion make the A9 far more than a simple evolution.

It's designed to become the control center of the entire booth.

From a two-deck home system to a four-deck club installation, from vinyl hybrids to massive festival stages, the DJM-A9 is built for the moment when mixing stops being track-to-track playback and becomes a performance.

Four channels. Four decks. Thousands of tracks. One crowd.

Take control with the Pioneer DJ DJM-A9.
