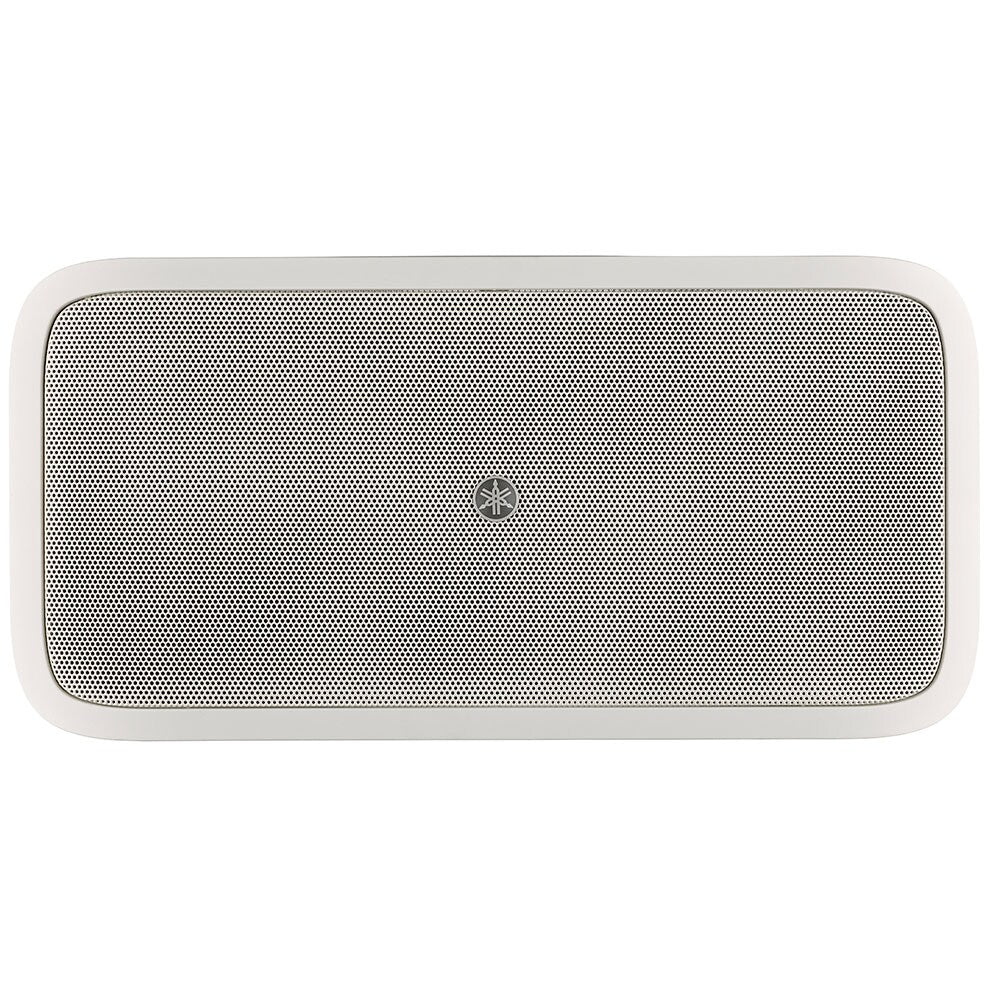

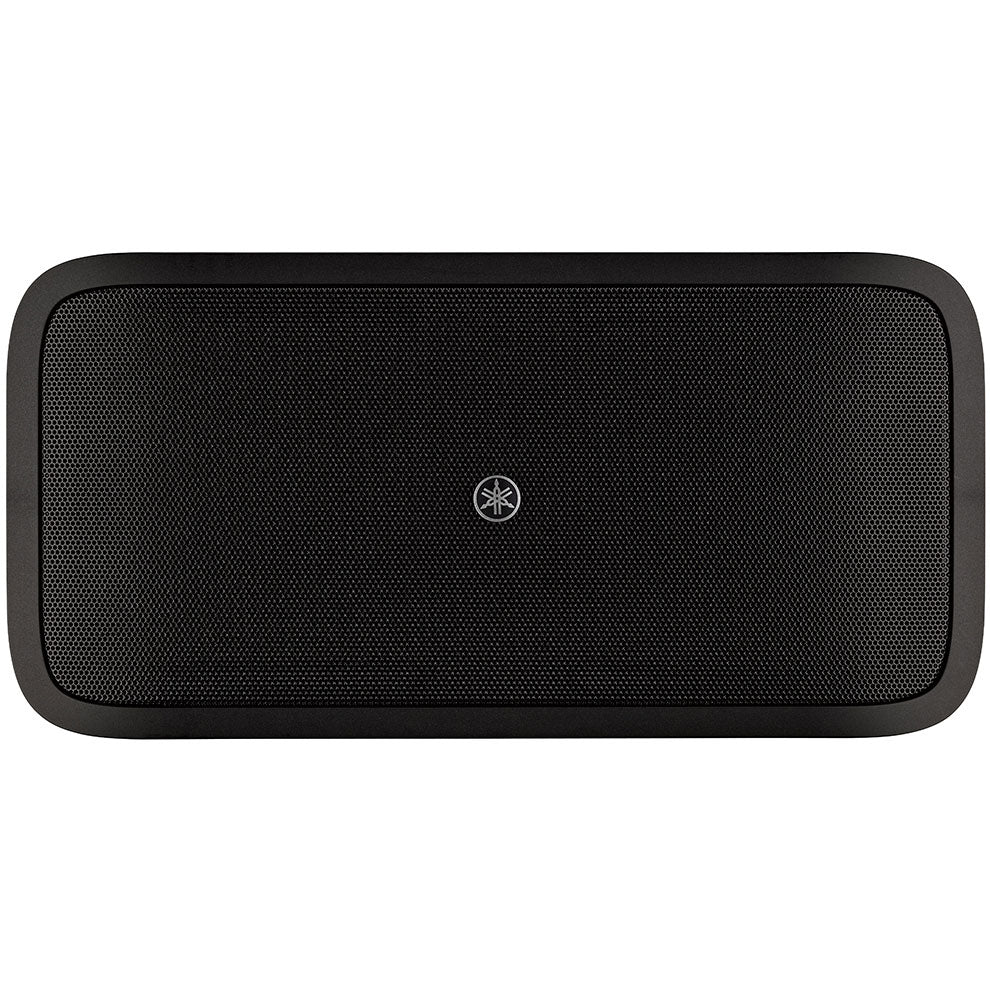

Yamaha VXS3SB Compact Surface Mount Subwoofer
Call for Price
Yamaha VXS3SB Compact Surface Mount Subwoofer is available on preorder. For best pricing, project quantity discounts, and installation support, please contact our team.
Overview
The Yamaha VXS3SB is a compact surface-mount subwoofer engineered for premium commercial and installation audio applications where space, aesthetics, and balanced sound performance matter equally. Designed to complement Yamaha VXS and VXC series loudspeakers, the VXS3SB delivers smooth and controlled low-frequency reinforcement for retail stores, restaurants, cafés, hospitality venues, conference rooms, and modern architectural environments.
Despite its ultra-compact form factor, the VXS3SB produces impressive bass performance that enhances background music systems without overwhelming the listening environment. Its slim cabinet design allows discreet installation on walls, under seating areas, or within architectural spaces where traditional subwoofers may be visually intrusive.
Built with Yamaha’s renowned installation-grade reliability, the VXS3SB offers flexible mounting options, high durability, and exceptional sonic consistency for professional AV integrators and commercial audio designers.
Key Features
- Compact surface-mount subwoofer designed for commercial installations
- Smooth and musical low-frequency enhancement for background music systems
- Ideal companion for Yamaha VXS and VXC speaker series
- Slim and discreet cabinet suitable for modern interiors
- Flexible wall-mount and architectural installation options
- High-quality finish for retail, hospitality, and corporate environments
- Optimized for restaurants, cafés, lounges, boutiques, and conference spaces
- Reliable long-term performance for professional AV applications
- Wide frequency response with controlled bass reproduction
- Available in elegant black and white finishes
Specifications
|
Specification |
Details |
|---|---|
|
Product Type |
Surface Mount Subwoofer |
|
Frequency Range |
67Hz – 200Hz |
|
Nominal Coverage |
Omni-directional |
|
Power Handling |
100W Noise / 200W Program |
|
Low Frequency Driver |
Dual 3.5” Cone Drivers |
|
Nominal Impedance |
8 Ohms |
|
Transformer Taps |
70V / 100V Compatible |
|
Sensitivity |
84 dB SPL |
|
Maximum SPL |
99 dB SPL |
|
Enclosure Material |
MDF |
|
Finish Options |
Black / White |
|
Mounting |
Surface Mount |
|
Application |
Commercial Installation Audio |
|
Ideal For |
Retail, Hospitality, Restaurants, Conference Rooms |
|
Dimensions |
Compact Slim Profile |
|
Manufacturer |
Yamaha |
Designed for Modern Commercial Spaces
The Yamaha VXS3SB is purpose-built for environments where premium sound and clean architectural integration are equally important. Whether installed in luxury retail outlets, boutique cafés, hotel corridors, or corporate meeting spaces, the VXS3SB provides tight and balanced low-end reinforcement while maintaining a discreet visual presence.
Its compact dimensions make it particularly suitable for projects where traditional subwoofers are too large or visually distracting. Combined with Yamaha installation loudspeakers, the VXS3SB helps create a full-range and immersive audio experience with exceptional clarity and musicality.
Ideal Applications
- Restaurants & Cafés
- Retail Stores & Boutiques
- Corporate Offices
- Hospitality Venues
- Conference Rooms
- Educational Spaces
- Luxury Commercial Interiors
- Background Music Systems
