WesAudio - ng78 Stereo FET Compressor with Digital Recall

Fully Analog Stereo FET Compressor with Digital Recall

Core Features:
· 100% Analog Stereo FET Compressor (1176-style) with +24dBu of headroom.
· Five Ratio Settings: 2:1, 4:1, 8:1, 12:1, 20:1 – including All-Button Mode and a gentle 2:1 ratio option.
· Extended Attack Range – now starting from slower values for more natural transient control.

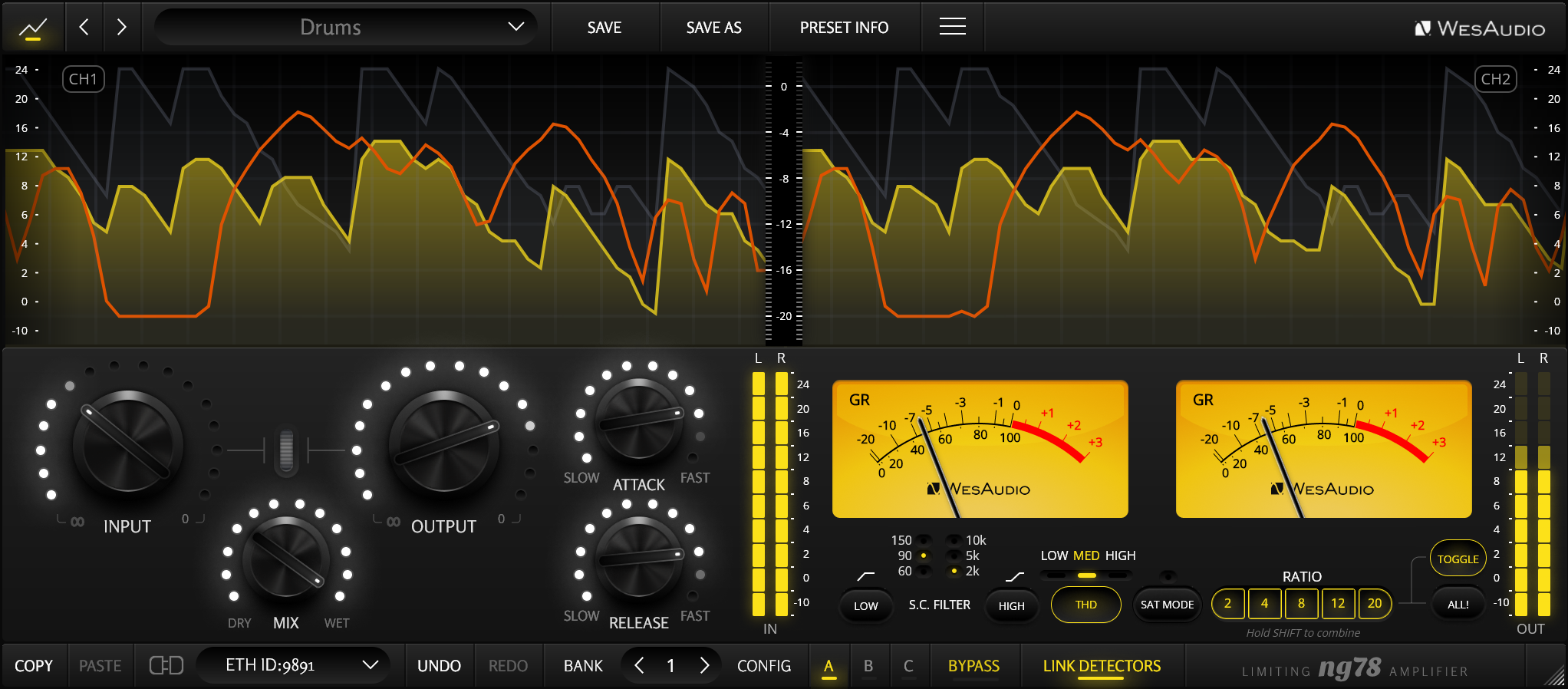

· Total Recall & Plug-in Control – seamless integration with most major DAWs.
· Parallel Compression via dedicated MIX knob.
· Carnhill Transformer Output Stage for added analog weight and character.
· Flexible Detector Linking – choose between dual mono stereo compression or true stereo operation.

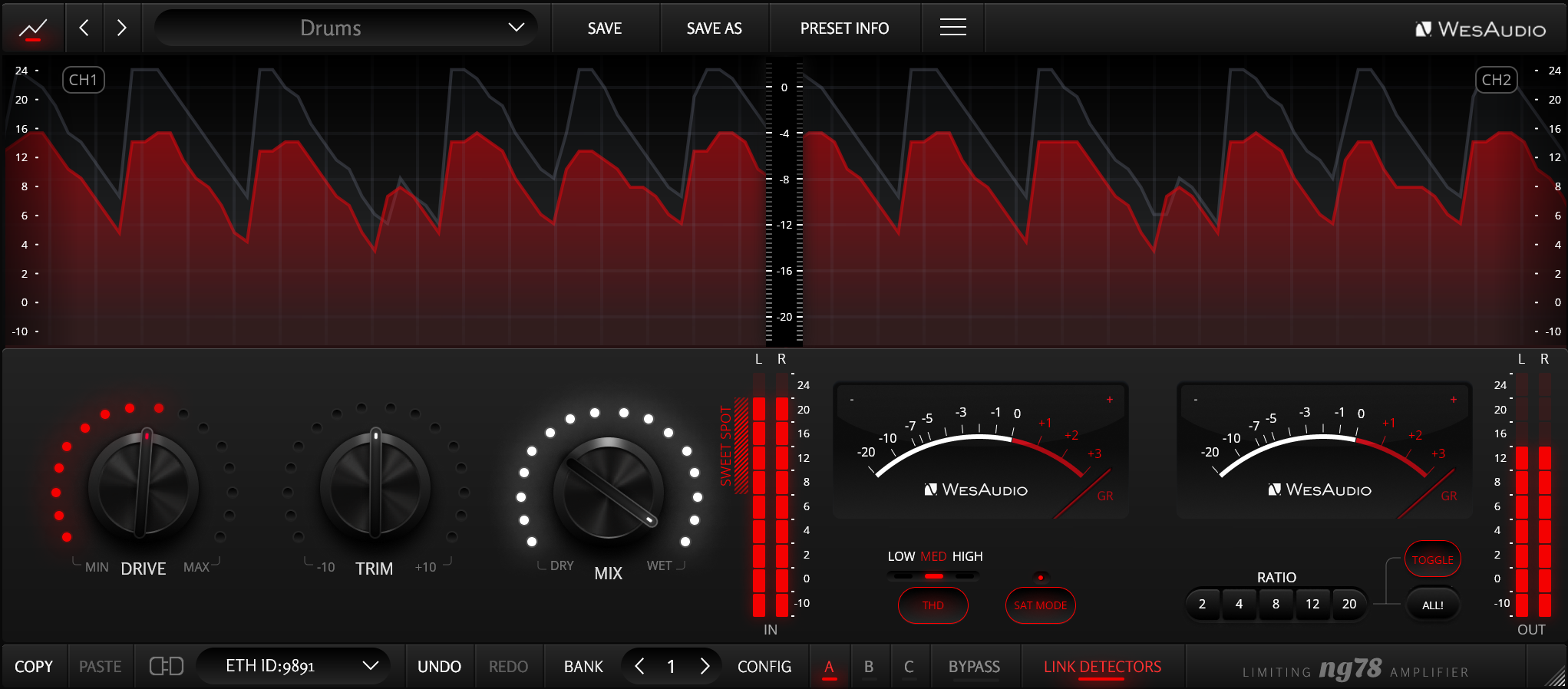

· Saturation Mode – a dedicated control simultaneously adjusts input and output (compression circuit disabled),
turning the unit into a saturation box or clipper.
· Dynamic Link Technology – adaptive circuit that compensates for component tolerances in the sidechain signal,
ensuring perfect stereo balance during compression for every parameter combination.

Sidechain & Metering:
· Advanced Sidechain EQ with two independent sections:
· High-Pass Filter at 60 Hz / 90 Hz / 150 Hz – preserve low-end while compressing.
· High Shelf at 2 kHz / 5 kHz / 10 kHz – emphasize mid/high content for precise detection.
· 2 Vintage-Style Gain Reduction Meters for classic visual feedback.
· High-Precision Input & Output Metering for accurate level monitoring.

Additional Highlights
· Classic FET Compressor Controls: Input, Output, Attack, Release.
· Selectable THD (Total Harmonic Distortion) with Low, Mid, and High modes – tailored harmonic
enhancement from the FET circuit.
· Fully Digitally Controlled Analog Circuit – isolated control path ensures pure analog signal integrity.
· Hardware A/B Switching – instantly compare two independent settings.
· Analog Automation in DAW for modern hybrid workflows.

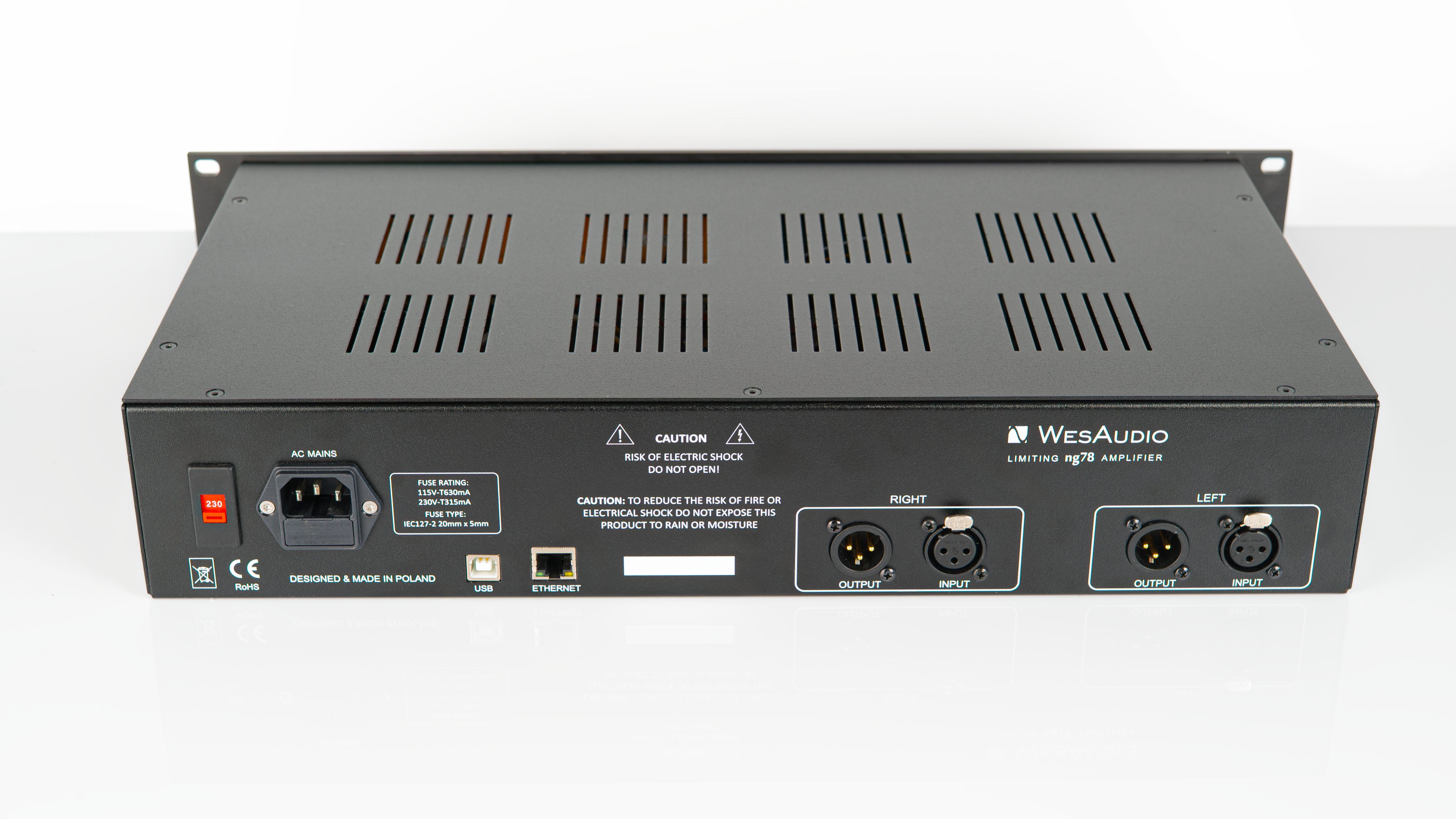

· USB & Ethernet Connectivity for flexible plugin integration.
· Form Factor: 2U rackmount.

SPECS:
· Attack time: 20us – 20ms,
· Release time: 50ms – 1100ms,
· Compression ratio: 2:1, 4:1, 8:1, 12:1, 20:1 (all possible combinations),
· True Bypass,
· Side chain signal HPF: 60, 90, 150 Hz,
· Side chain signal High Shelf: 2, 5, 10 kHz,
· Output impedance: 50ohm,
· Frequency response: 20Hz-20kHz (+/- 1dB),
· Signal to noise ratio SNR >83dB,
· Balanced output and input,
· Case Rack: 2U,
· Power consumption: 14W,
· Dimensions: 88x483x235mm,
· Weight 7kg,
· Warranty 2 years.
