Yamaha DM5 Digital Mixing Console

Professional Mixing Power. Faster Workflow. Yamaha Reliability.

The Yamaha DM5 Digital Mixing Console brings high-end Yamaha digital mixing technology into a streamlined, powerful platform built for modern live sound, touring, houses of worship, theatres, corporate events, broadcast, and professional installations.

Designed around 60 mono input mixing channels, the DM5 combines Yamaha’s renowned transparent sound with a fast, highly visual workflow. Its 26-fader control surface, dual 13.3-inch multi-touch displays, dedicated 4.3-inch customizable touchscreens, and innovative dynamic glass keys put critical mixing functions exactly where you need them.

Add 32 analog inputs, 16 analog outputs, 64 x 64 Dante networking at 96 kHz, 18 x 18 USB audio, extensive onboard processing, 12-channel Dugan automixing, and PY card expansion, and the Yamaha DM5 becomes a remarkably flexible centerpiece for demanding professional audio systems.

Whether you’re mixing a live band, managing a multi-zone venue, running corporate conferences, handling theatre productions, or building a networked audio system, the DM5 is engineered to help you work faster without sacrificing creative control.

Key Features

• 60 mono input mixing channels for demanding live and installed sound applications

• 26 motorized faders arranged across two control bays

• Dual 13.3-inch multi-touch displays for fast, intuitive operation

• Dual 4.3-inch customizable multi-touch displays for User Defined Keys and workflow control

• Innovative glass keys with dynamic labeling that adapt to mixer functions

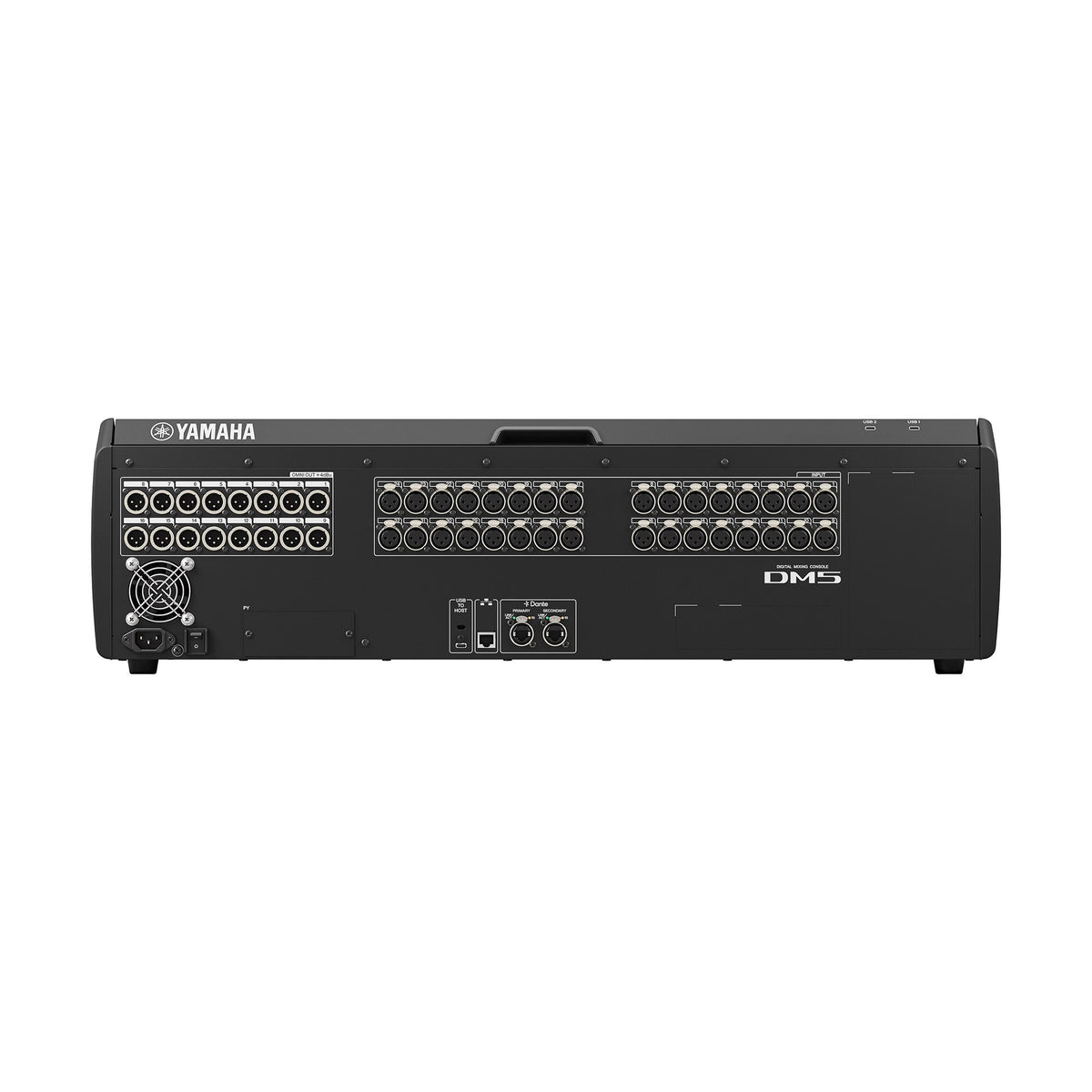

• 32 analog inputs and 16 analog outputs onboard

• Integrated 64-channel input / 64-channel output Dante networking

• Dante operation at up to 96 kHz

• 24 Mix buses, 12 Matrix buses, and 2 Stereo buses

• 12 DCAs for efficient group control

• 18-in / 18-out USB audio interface

• 16-slot onboard effects rack

• 43 high-quality onboard effects, including delays and natural-sounding reverbs

• Multiple channel EQ types with real-time analyzer

• 12 channels of Dugan automixing included as standard

• PY expansion slot for additional DSP, Dante, MADI, AES/EBU, control, and other expansion options

• Bluetooth connectivity for convenient audio playback

• Ethernet/RJ45 connectivity for mixer control

• Up to 500 scene memories

• Compatible with Yamaha R Series I/O racks

• Remote and offline workflow support through Yamaha DM Editor, DM StageMix, MonitorMix, and ProVisionaire Control Plus

• Optional Broadcast and Theatre feature packages for specialized applications

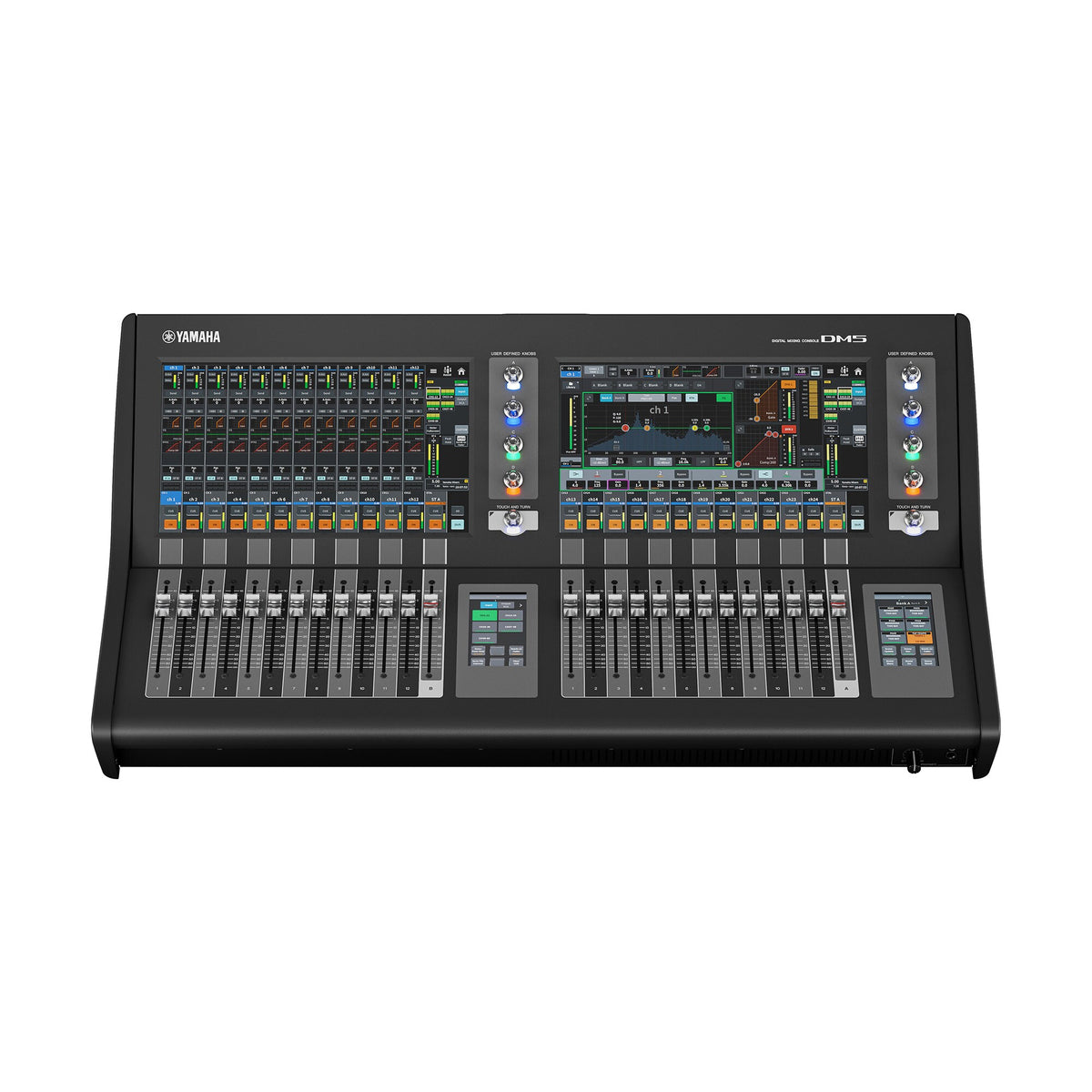

Dual-Screen Workflow Built for Speed

The Yamaha DM5 is designed to keep engineers focused on the mix instead of digging through menus. Two large 13.3-inch multi-touch displays provide a spacious visual workspace, while the console’s 26 physical faders deliver the tactile control professional engineers expect.

One of the DM5’s standout innovations is Yamaha’s dynamic glass-key interface. These tactile controls can change their displayed labels depending on the current mixer state, providing quick access to relevant functions while keeping the surface clean and uncluttered.

Two additional 4.3-inch touchscreens can be customized for User Defined Keys and other functions, giving engineers the flexibility to build a control surface around their own workflow.

Yamaha Sound with Serious Processing Power

A great console should give you control without getting in the way of the source. The DM5 continues Yamaha’s focus on transparent, detailed sound while providing the processing tools needed to shape virtually any mix.

Each channel offers comprehensive EQ and dynamics processing, including multiple EQ types and real-time analysis. For creative processing, the DM5 includes a 16-slot effects rack loaded with 43 high-quality effects, giving engineers access to reverbs, multiple delay types, and other essential production tools directly inside the console.

Need more processing? The integrated PY expansion slot allows the DM5 system to grow with your requirements. Yamaha’s optional PY-DSP card, for example, can add substantial additional processing resources for Premium effects.

Dante Networking Ready — Right Out of the Box

The Yamaha DM5 is built for networked audio systems.

Integrated 64 x 64 Dante connectivity at up to 96 kHz makes it easy to connect compatible stage boxes, I/O racks, amplifiers, recording systems, and other Dante-enabled equipment over an Ethernet-based audio network.

Compatibility with Yamaha R Series I/O products also makes the DM5 a compelling option for users expanding an existing Yamaha ecosystem or designing a scalable system from the ground up.

Built-in Dugan Automixing

Corporate events, conferences, houses of worship, panel discussions, and broadcast applications often require multiple open microphones — and that’s exactly where automatic mixing can make a major difference.

The Yamaha DM5 includes 12 channels of Dugan automixing as standard, helping manage gain distribution across multiple microphones and reducing the amount of constant manual fader adjustment required during speech-heavy productions.

Optional licensing can expand Dugan automixing capability even further for larger productions.

Expand the DM5 with PY Cards

The DM5 includes a PY expansion slot, allowing the console to adapt to different professional workflows.

Compatible options include expansion for additional Dante, MADI, AES/EBU, additional DSP processing, MIDI/GPI control, and Waves SoundGrid connectivity. This modular architecture makes the DM5 suitable for everything from straightforward live sound systems to sophisticated touring, theatre, broadcast, and installed-audio environments.

Made for Live Sound, Theatre, Broadcast and Installation

The Yamaha DM5 is an exceptionally versatile digital mixing platform for:

Live Sound & Touring — Fast operation, powerful processing, Dante networking, flexible routing, and expandable I/O.

Houses of Worship — Intuitive touchscreen control, scene recall, automixing, remote operation, and scalable networked audio.

Corporate & Conference Audio — Dugan automixing, extensive routing, Dante connectivity, and flexible matrix outputs.

Theatre & Performing Arts — Expandable functionality and an optional Theatre Package for specialized production workflows.

Broadcast & Streaming — Flexible routing plus an optional Broadcast Package offering specialized functions such as Mix Minus and Audio Follow Video.

Installed Sound — Dante networking, extensive matrix routing, remote control, Yamaha R Series compatibility, and scalable I/O make the DM5 well suited to professional venue installations.

Yamaha DM5 Specifications

Specification	Yamaha DM5
Console Type	Professional Digital Mixing Console
Input Mixing Channels	60 Mono
Mix Buses	24
Matrix Buses	12
Stereo Buses	2
DCAs	12
Faders	26 (12 + 1 + 12 + 1)
Main Displays	2
