Yamaha VXC4 4-inch Full-Range In-Ceiling Speaker

Bring premium Yamaha sound into commercial spaces without compromising the interior design. The Yamaha VXC4 is a compact 4-inch full-range in-ceiling speaker engineered for clear, consistent music reproduction and highly intelligible announcements. With its wide 130° conical coverage, bass-reflex enclosure, flexible 70V/100V and 8-ohm operation, and installer-friendly mounting system, the VXC4 is an excellent choice for professional distributed audio installations.

Designed for restaurants, cafés, retail stores, hotels, corporate spaces, educational facilities, conference rooms, and other commercial environments, the Yamaha VXC4 combines discreet aesthetics with the reliable performance expected from Yamaha Commercial Audio.

Clear, Consistent Yamaha Sound

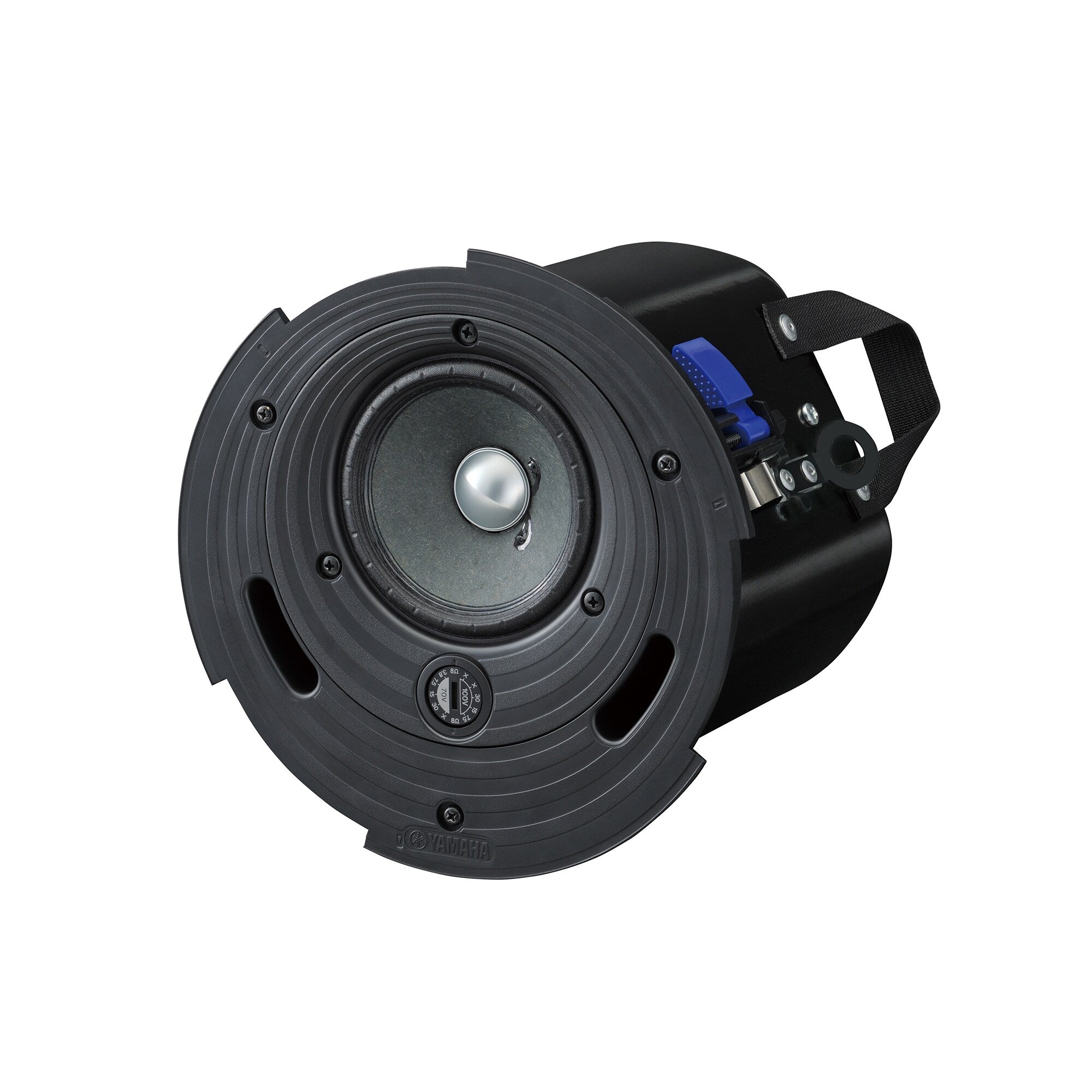

At the heart of the VXC4 is a 4-inch full-range driver optimized for both background music and voice reproduction. Its carefully tuned bass-reflex design delivers a firm, controlled low end while maintaining the clarity required for paging, presentations, and announcements.

With an 80Hz–20kHz frequency range, 87dB sensitivity, and calculated maximum output of 108dB SPL, the VXC4 provides impressive performance from a remarkably compact ceiling-mounted enclosure.

Wide 130° Coverage

Achieving consistent sound throughout a commercial space can reduce the need for excessive speaker quantities. The Yamaha VXC4 provides a broad 130° conical nominal coverage pattern, helping distribute audio evenly across the listening area.

This makes the VXC4 particularly well suited to distributed ceiling systems where smooth coverage and consistent sound levels are essential.

8-Ohm, 70V and 100V System Compatibility

The VXC4 is ready for both low-impedance and distributed audio installations. Its built-in transformer allows installers to select between 8-ohm operation and 70V/100V transformer taps directly at the speaker.

70V taps: 30W, 15W, 7.5W, 3.8W
100V taps: 30W, 15W, 7.5W

This flexibility makes the VXC4 equally useful in smaller systems powered by conventional amplifiers and larger commercial installations involving multiple loudspeakers over longer cable runs.

Designed for Fast, Professional Installation

Yamaha designed the VXC Series with installers in mind. An Anti-Drop tab temporarily holds the speaker during ceiling installation, helping make positioning safer and easier.

The VXC4 also includes an O-ring, tile rails, cutout template, and installation hardware, reducing the number of additional components required on site.

A 4-pin Euroblock connector provides input and loop-through connections, making multi-speaker distributed systems straightforward to wire.

Discreet Design for Modern Interiors

Professional audio should complement a space rather than dominate it visually. The VXC4 features a clean, low-profile grille that integrates neatly into ceilings in hospitality, retail, corporate, and architectural environments.

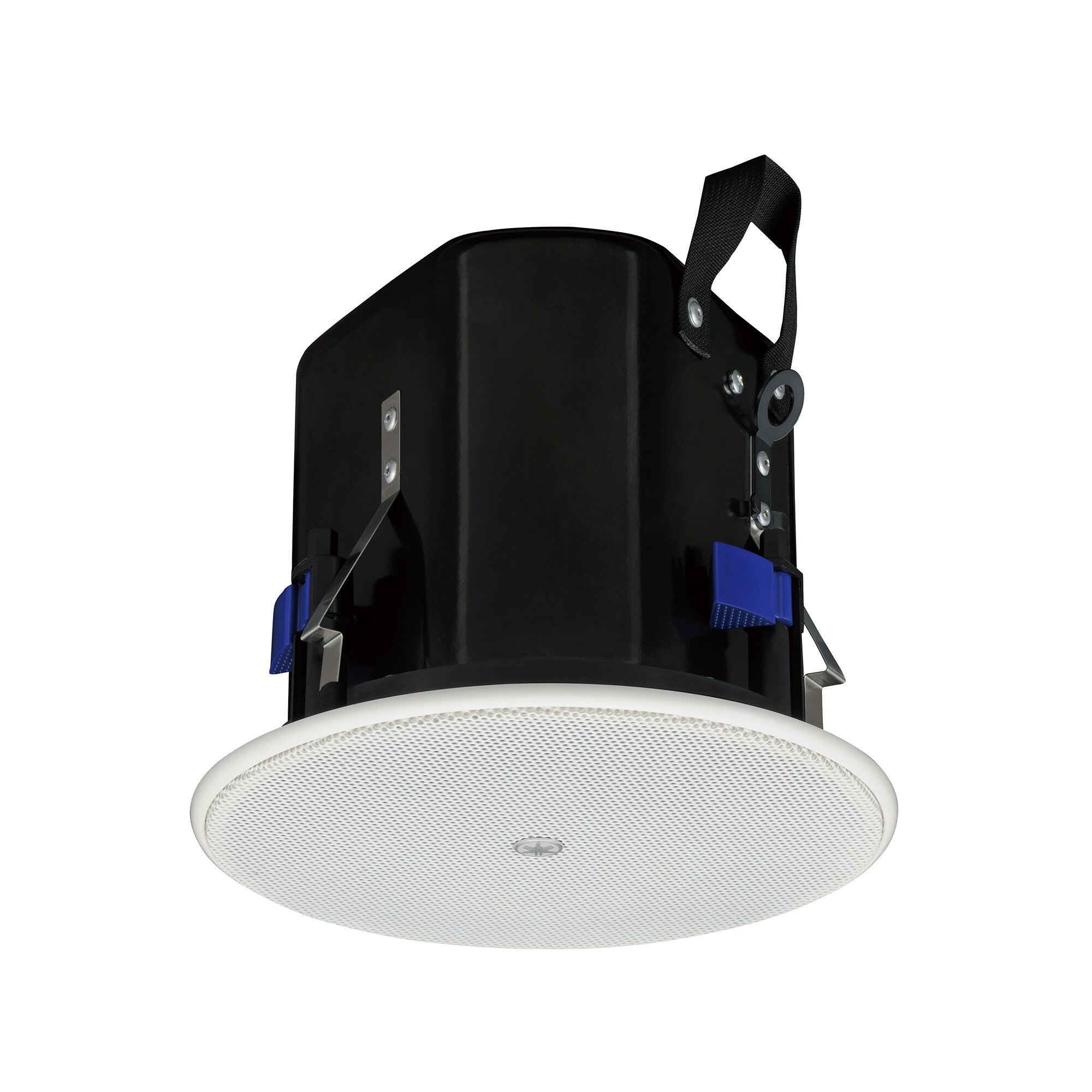

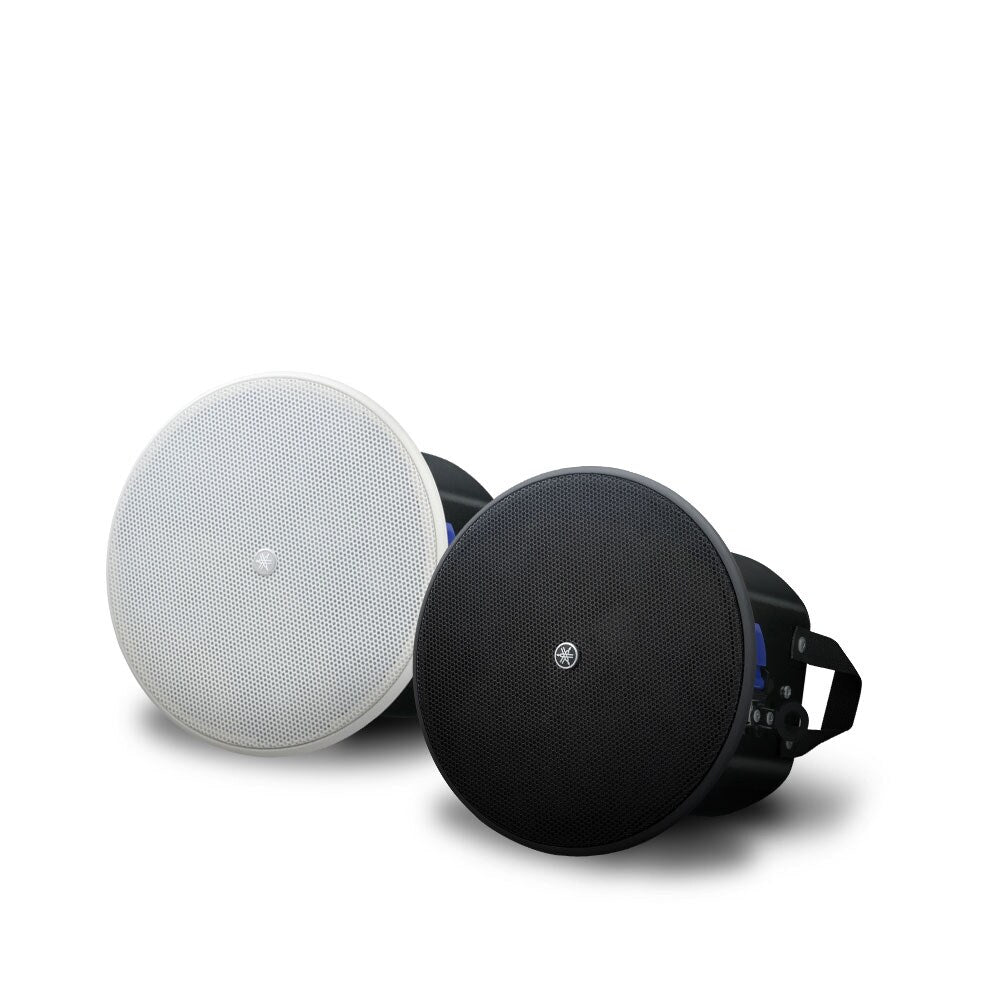

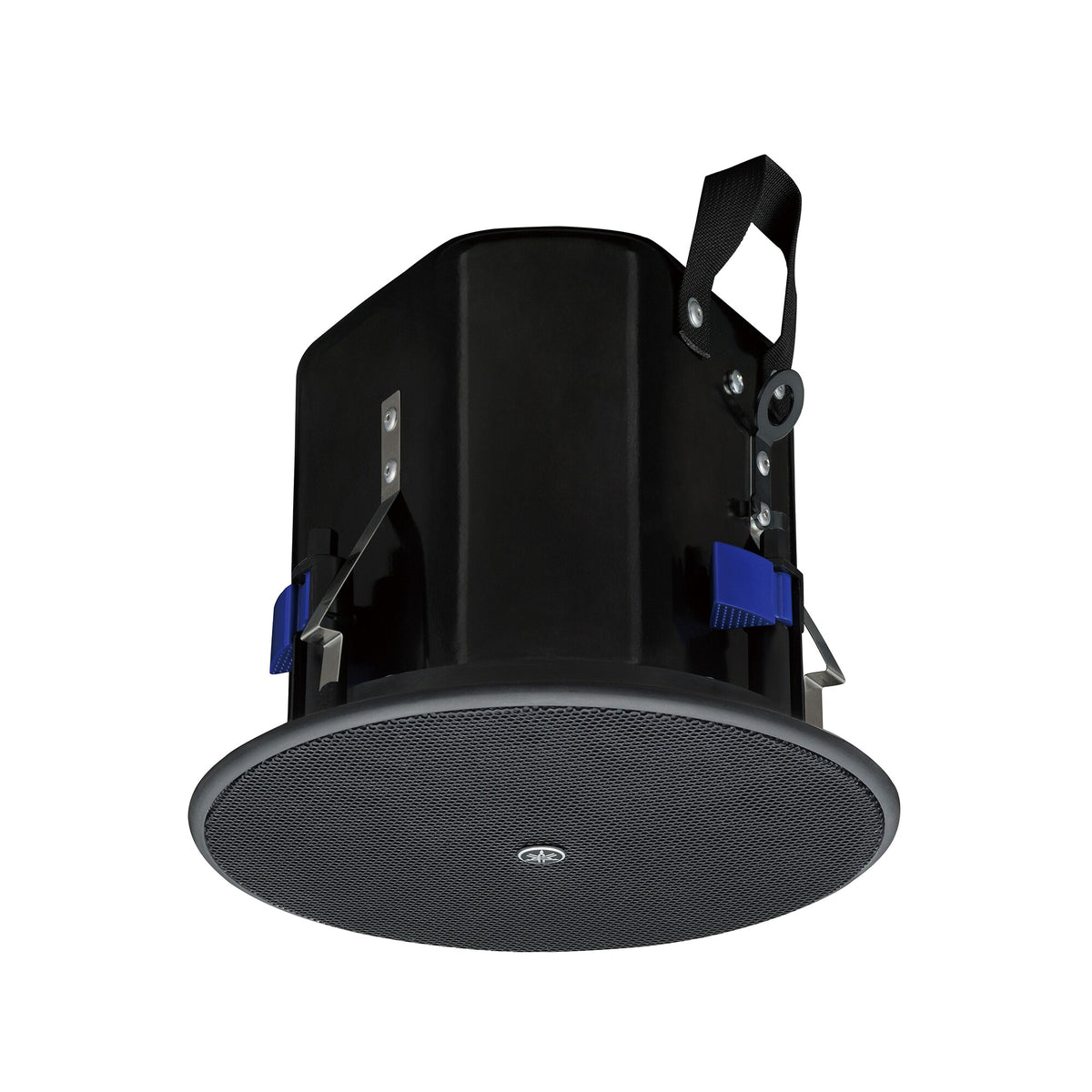

The grille can also be painted when required to better match the surrounding décor. The standard VXC4 comes in black, while the VXC4W provides a white alternative.

Key Features

• Professional 4-inch full-range in-ceiling loudspeaker

• Yamaha-engineered sound for music and speech reproduction

• Bass-reflex enclosure for tight, controlled low-frequency response

• Wide 130° conical coverage

• Frequency response of 80Hz–20kHz (-10dB)

• 30W Noise / 60W Program / 120W Peak power handling

• 87dB SPL sensitivity

• Maximum calculated SPL of 108dB at 1 metre

• Supports 8-ohm, 70V and 100V operation

• Built-in multi-tap transformer

• Euroblock input with loop-through connection

• Anti-Drop tab simplifies installation

• Integrated overload protection

• Paintable grille for architectural integration

• O-ring and tile rails included

• Compact Ø225mm enclosure

• Available in black (VXC4) and white (VXC4W)

• Ideal for commercial distributed audio and background music systems

Yamaha VXC4 Specifications

Ideal Applications

The Yamaha VXC4 ceiling speaker is an excellent solution for:

• Restaurants, cafés and bars

• Hotels and hospitality venues

• Retail stores and showrooms

• Corporate offices

• Meeting and conference rooms

• Educational facilities

• Reception and waiting areas

• Museums and galleries

• Commercial background music systems

• Paging and announcement systems

• Multi-zone 70V/100V distributed audio installations

Why Choose the Yamaha VXC4?

The Yamaha VXC4 delivers the combination professional AV integrators look for: excellent sound quality, broad coverage, flexible system compatibility, discreet styling, and efficient installation.

Whether you're designing an elegant background music system for a restaurant, distributing audio throughout a retail environment, or installing a multi-zone commercial sound system, the VXC4 provides dependable Yamaha performance in a compact ceiling speaker that virtually disappears into the room.
